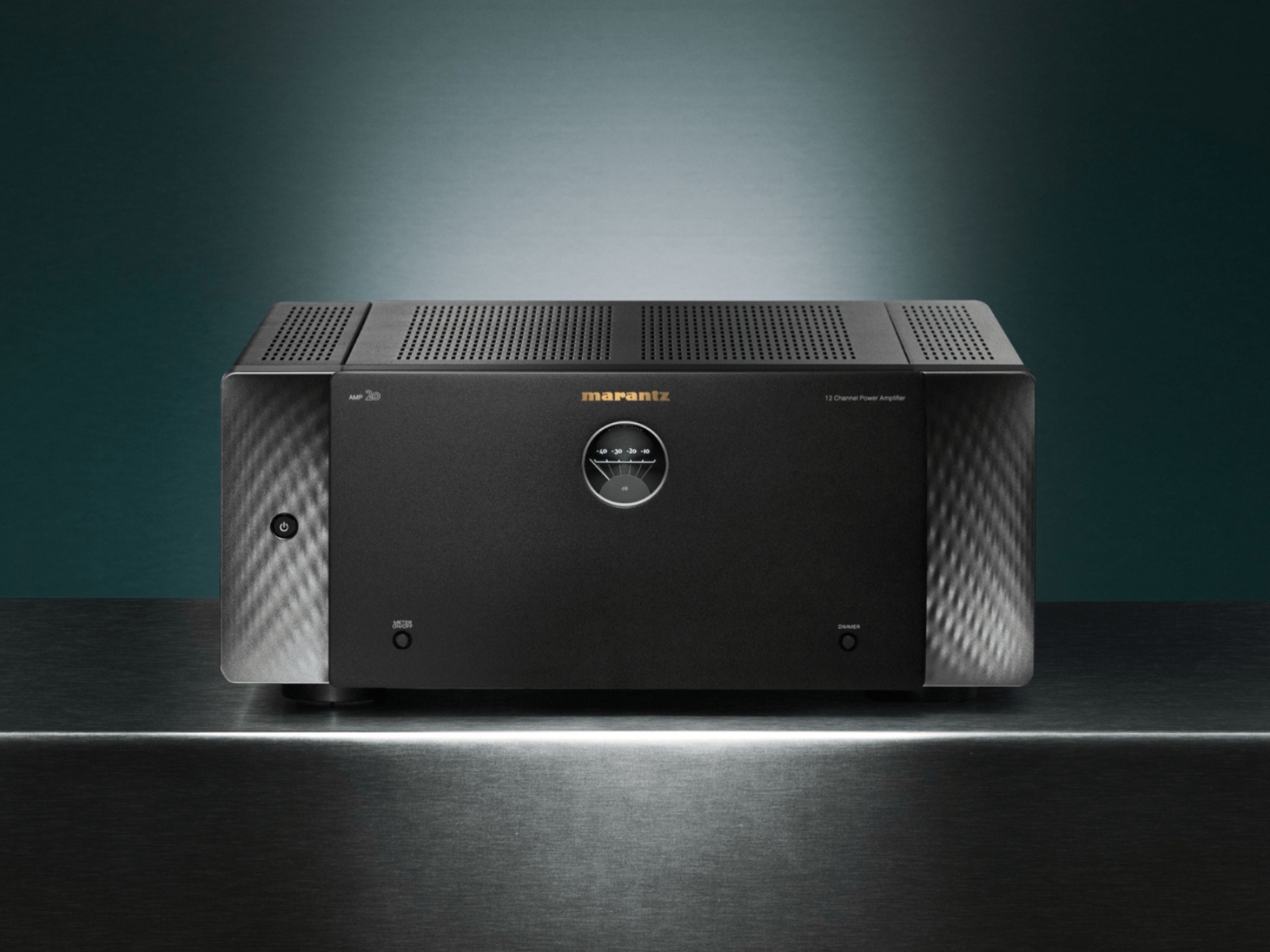

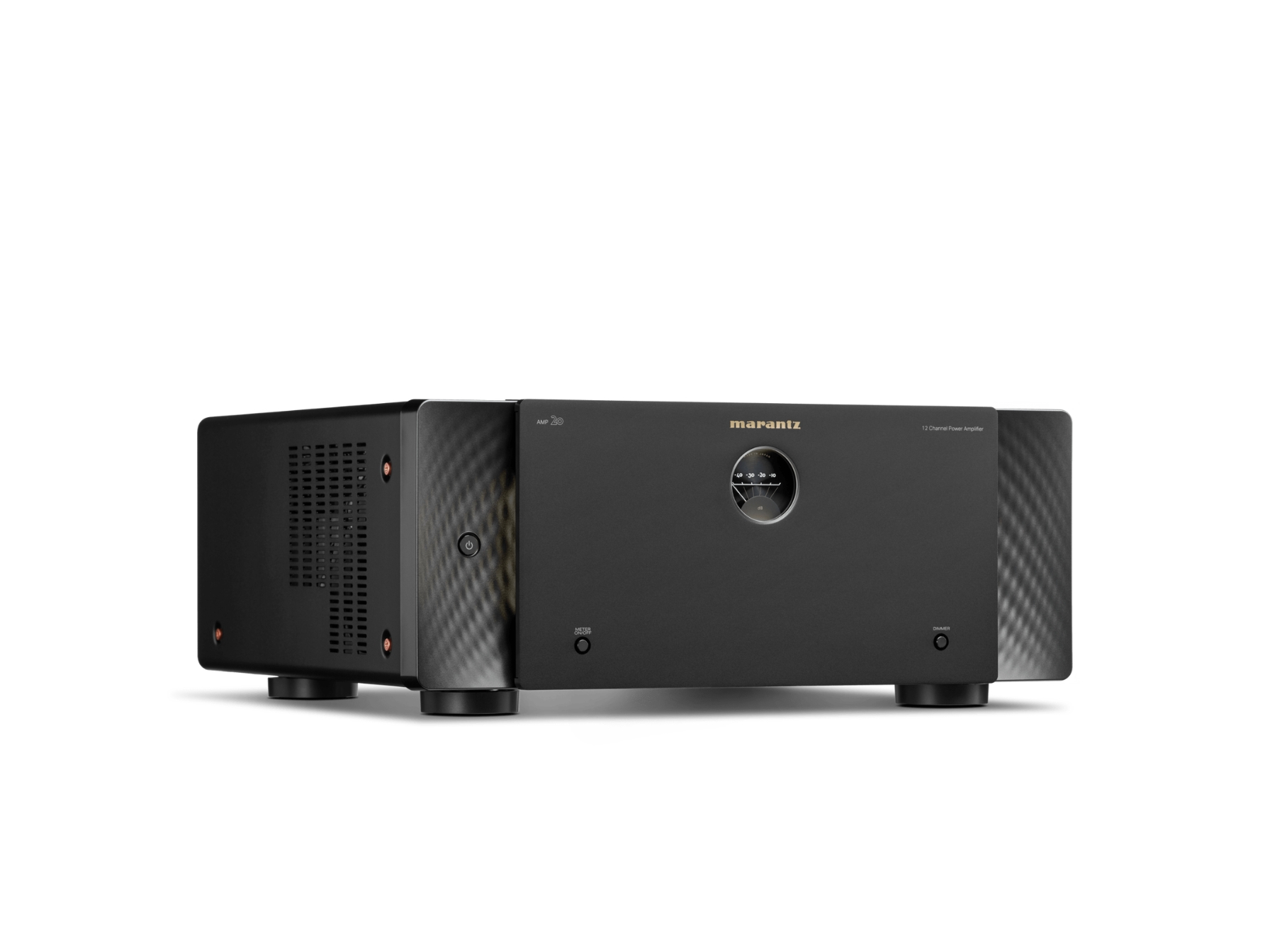

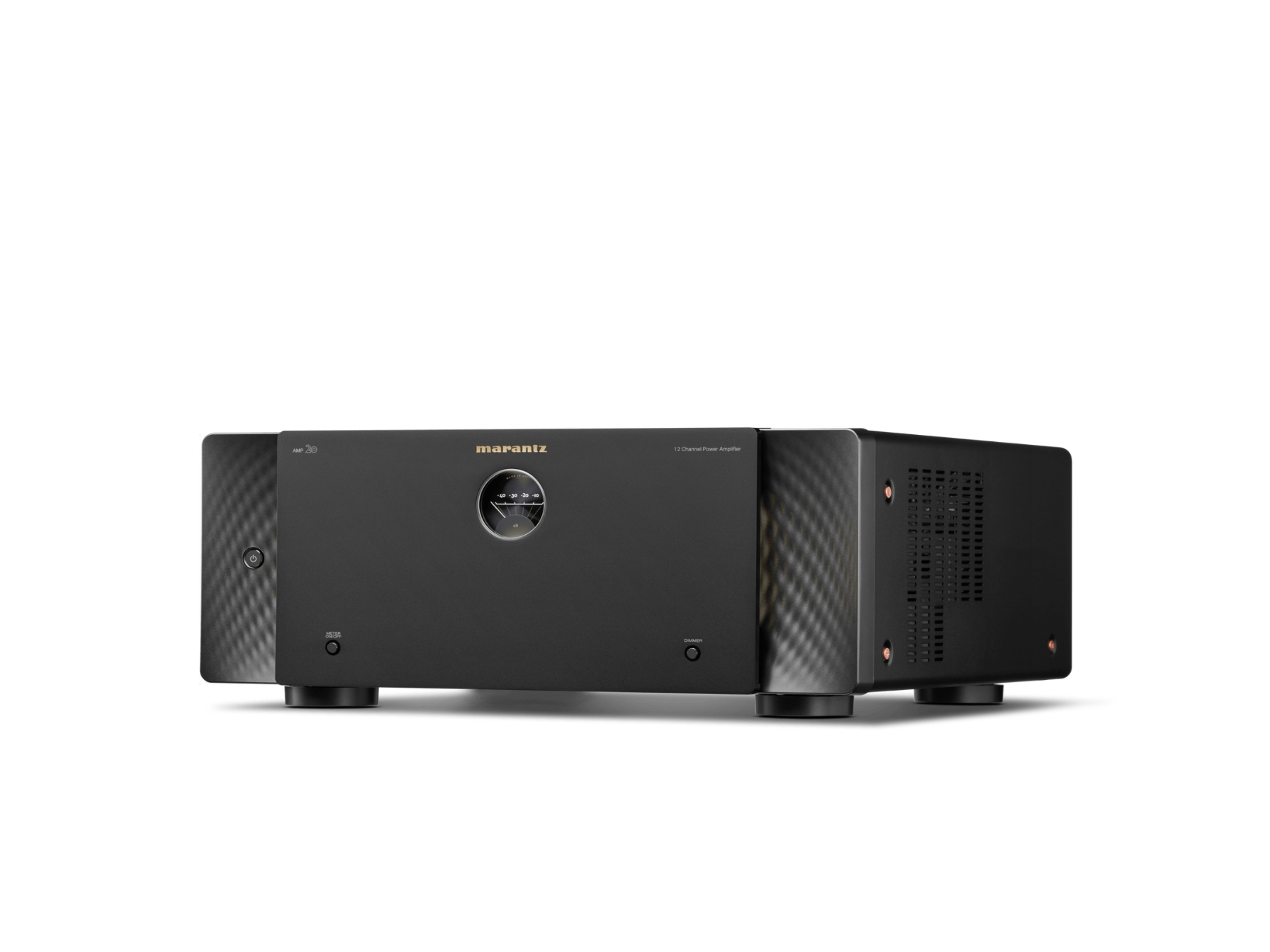

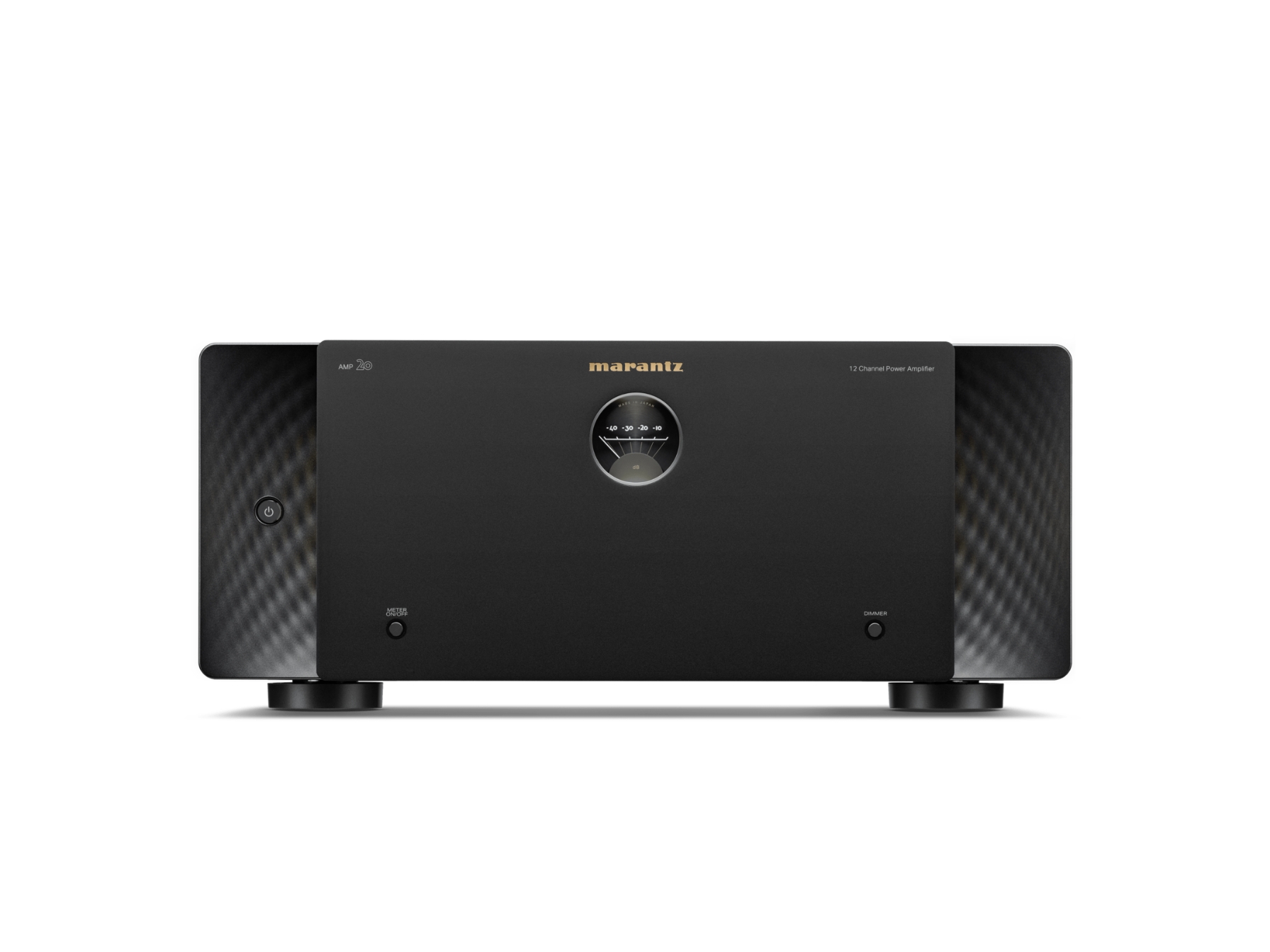

Marantz 12 kanālu jaudas pastiprinātājs AMP 20

AMP 20 combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance. When paired with AV 20, the results are unforgettable.

Specifications

Multi-Room CI

RS232 Control Yes
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Input/ Output 1 / 1

Others

Front Display Level Meter
Firmware Update by Network / USB / RS232C No / No / No
Auto Power off Yes

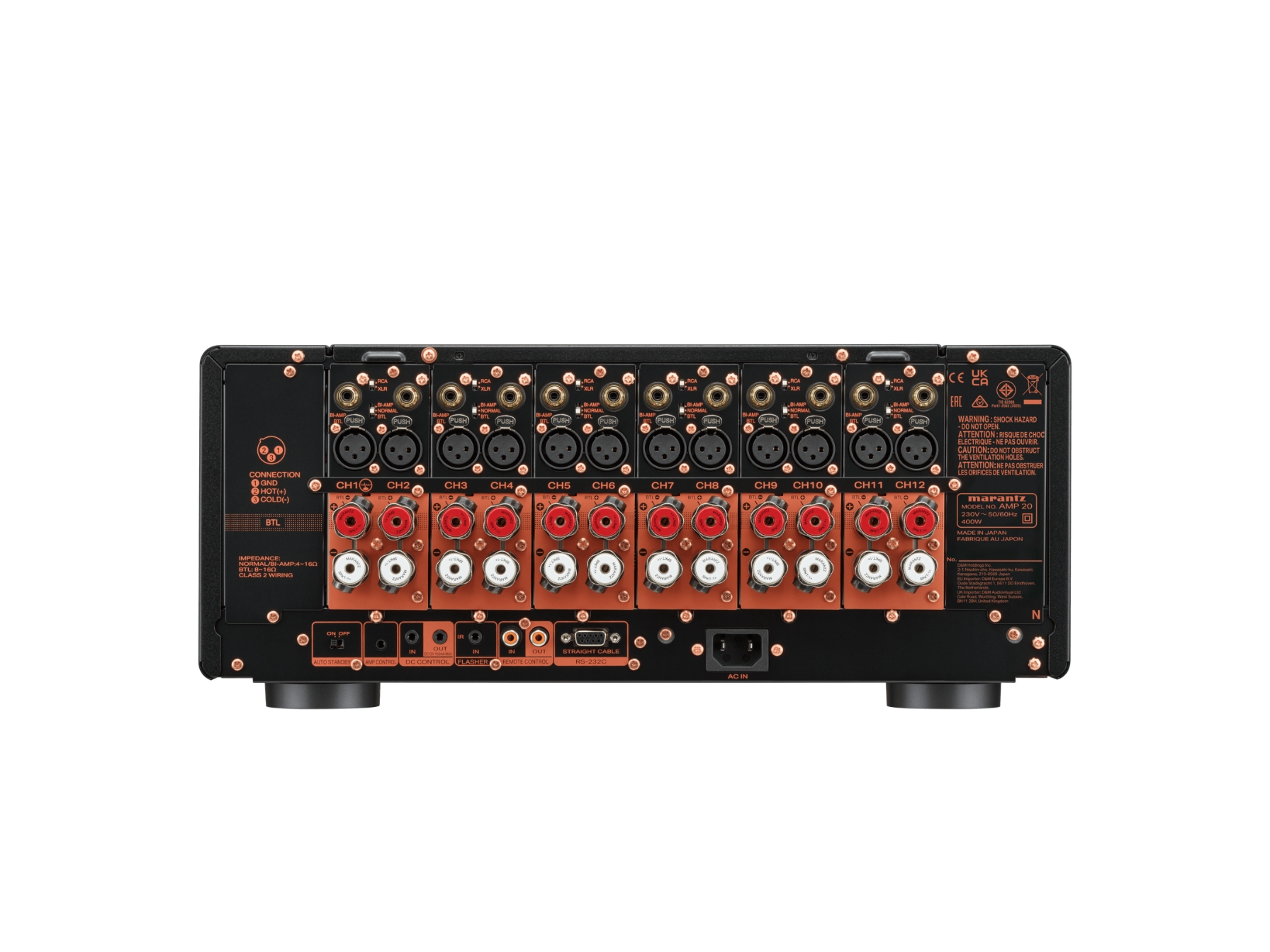

Inputs Outputs

Main Amplifier in Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.)
Speaker Terminal SPKT-1+
Number of Speaker Terminals 12
Bi-Amp Drive /BTL Drive Yes / Yes
Level Meter Yes
Chasiss Copper Plated

Specifications

Number of poweramps 12
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W

General

Metal Front Panel Yes
Pre-Programmed / Learnable / LCD Display No / No / No
Power Consumption in W 400
Power Consumption No-Sound W 110
Standby Consumption in W 0.2
Maximum Dimension in mm 442 x 442 x 191
Net weight in kg 18

Package Contents: Marantz 12Ch Power Amplifier AMP 20, Power cord, Remote control connector cable, AMP control connector cable, Speaker terminal wrench, Manual.
