DALI centrālais skaļrunis Epicon Vokal, valrieksts

PATENTED SMC

Our patented Soft Magnetic Composite (SMC) is the heart of the magnet motor system, minimising coloration and distortion.

GOLD PLATED TERMINALS

Engineered by DALI for ultra-low contact resistance, durability and sturdiness, plus high quality gold-plated binding posts.

IN-HOUSE WOOFERS

The latest generation of wood fibre based woofers are developed and manufactured at our production facilities in Denmark.

STUNNING REALISM & ACCURACY

EXPERIENCE EVERY WORD, SHOUT AND WHISPER

Turn your living room into a world-class home theatre with the star of the DALI EPICON family, the VOKAL centre speaker. Incorporating two 6½” woofers and our signature hybrid tweeter module, the EPICON VOKAL is the perfect match for any of the EPICON series speakers and brings an unparalleled level of realism to your movie-watching experience.

PATENTED SMC

REDUCING DISTORTION WITH SMC

For years, designing magnet systems has been a DALI speciality. For the EPICON VOKAL, we decided to challenge the highest performance standards and to take magnet system design further than ever before. The answer was Soft Magnetic Composite (SMC) material, which combines extremely high magnetic conductivity and very low electrical conductivity to deliver a dramatic reduction in distortion caused by mechanical loss in the magnet system.

HYBRID TWEETER

THE IDEAL HIGH-FREQUENCY SOLUTION

The DALI hybrid tweeter module features a 29 mm soft dome tweeter and a 10 x 55 mm planar tweeter that combine to create an amazing rendition of high-frequency details. The soft dome voice-coil is extremely light and agile, which helps deliver a broader bandwidth. The planar tweeter is the master of wide dispersion and, in combination with the soft dome, reaches as low as 2.5 kHz, providing continuous wide dispersion as the soft dome becomes more directional at higher frequencies. This extreme bandwidth and ultra-wide dispersion is an important part of DALI’s sound philosophy.

WOOD FIBRE WOOFERS

MANUFACTURED AT DALI FACILITY IN DENMARK

At DALI, we believe in designs based on low mechanical loss, and we were among the first to master the control of frequency response through carefully balanced designs. Designs such as our wood fibre cone technology with its light, rigid and randomly uneven structure that reproduces the finest details and dynamics in the music with very low loss of information.

CABINET DESIGN

BLENDING ELEGANT DESIGN & FUNCTIONALITY

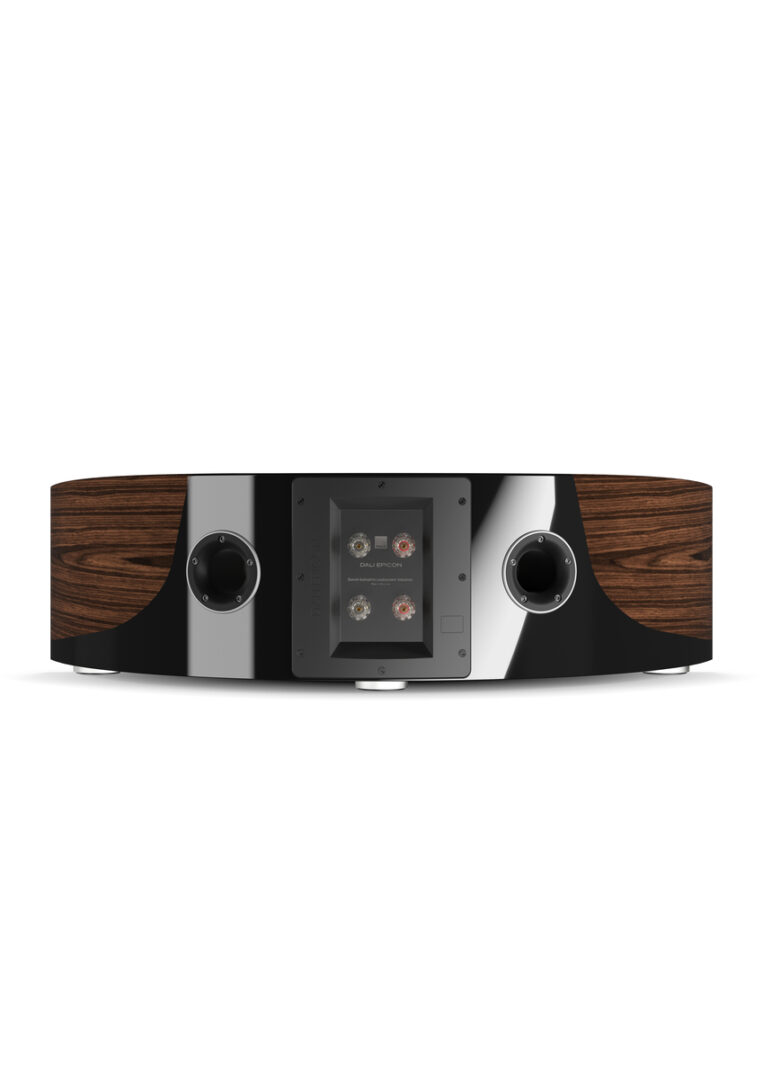

The beautiful EPICON VOKAL cabinet is finished in a real-wood veneer with 10 layers of lacquer, each hand polished to a deep gloss. But the cabinet is also functional. The rigid construction provides a solid platform and an acoustically tuned ‘spring’ for the drivers, which helps to eliminate resonant energy. Bass ports located directly behind the woofers also minimise turbulence and deliver exceptional timing.

SPECIFICATIONS

Frequency Range [+/- 3] dB [Hz]: 49-30.000
Sensitivity [2.83V/1m] [dB]: 89.5
Nominal Impedance [ohms]: 6
Maximum SPL [dB]: 111
Recommended Amp. Power [Watts]: 50-300
Crossover Frequencies [Hz]: 2.750/15.000
Crossover Principle: 2+½-way
High Frequency Driver: 1 x 29 mm soft dome, 1 x 10 x 55 mm ribbon
Low Frequency/Midrange Driver(s): 2 x 6½”
Enclosure Type: Bass reflex
Bass Reflex Tuning Frequency [Hz]: 46.5
Connection Input(s): Bi-wire / Bi-Amp
Recommended Placement: Stand/Below TV screen
Recommended Distance from rear wall to speaker’s rear side [cm]: >5
Magnetic Shielding: NO
Dimensions (H x W x D) [mm]: 247 x 816 x 349
Dimensions (H x W x D) [inches]: 9.72 x 32.13 x 13.74
Neto weight: 18.4 kg
All technical specifications are subject to change without notice.

Package Contents: DALI Center Speaker Epicon Vokal, Walnut
3 x Damper feet, DALI TERMINAL LINK SET, Polishing cloth, Manual, Grille.
