PSS-106, DAP aktīvais skaļrunis, darbināms ar akumulatoru

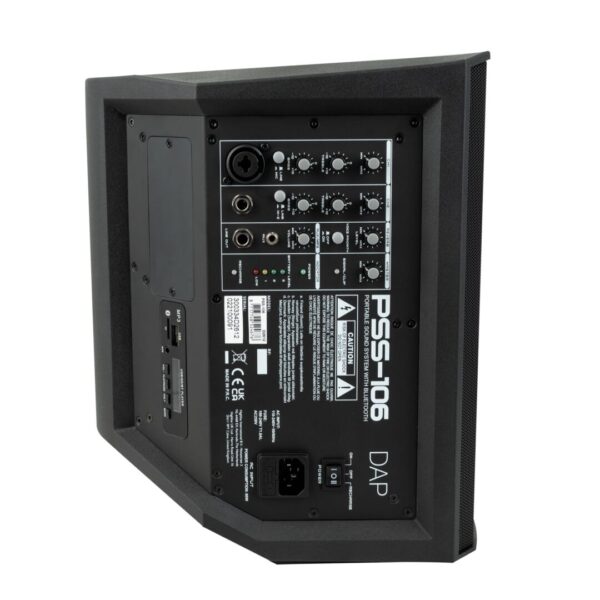

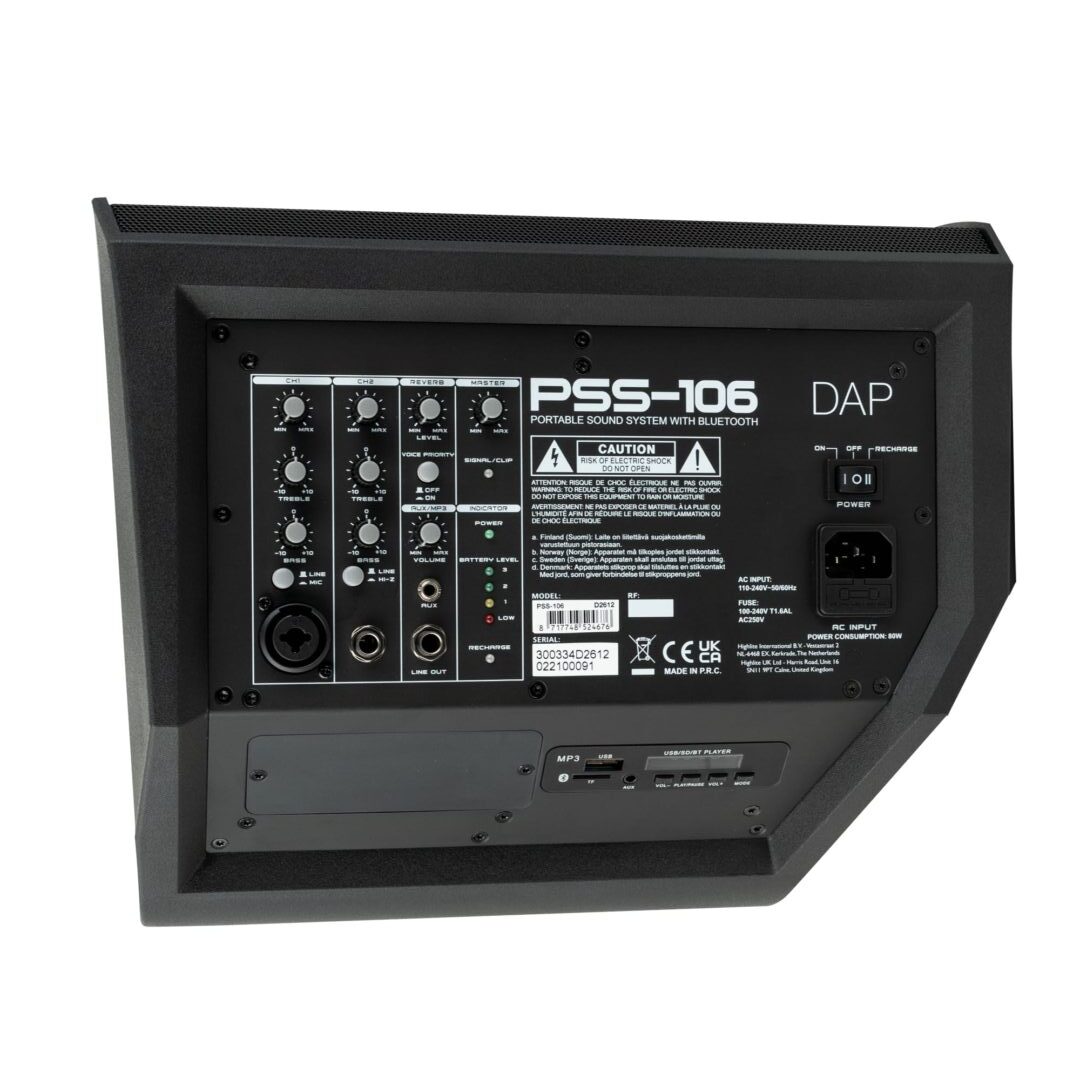

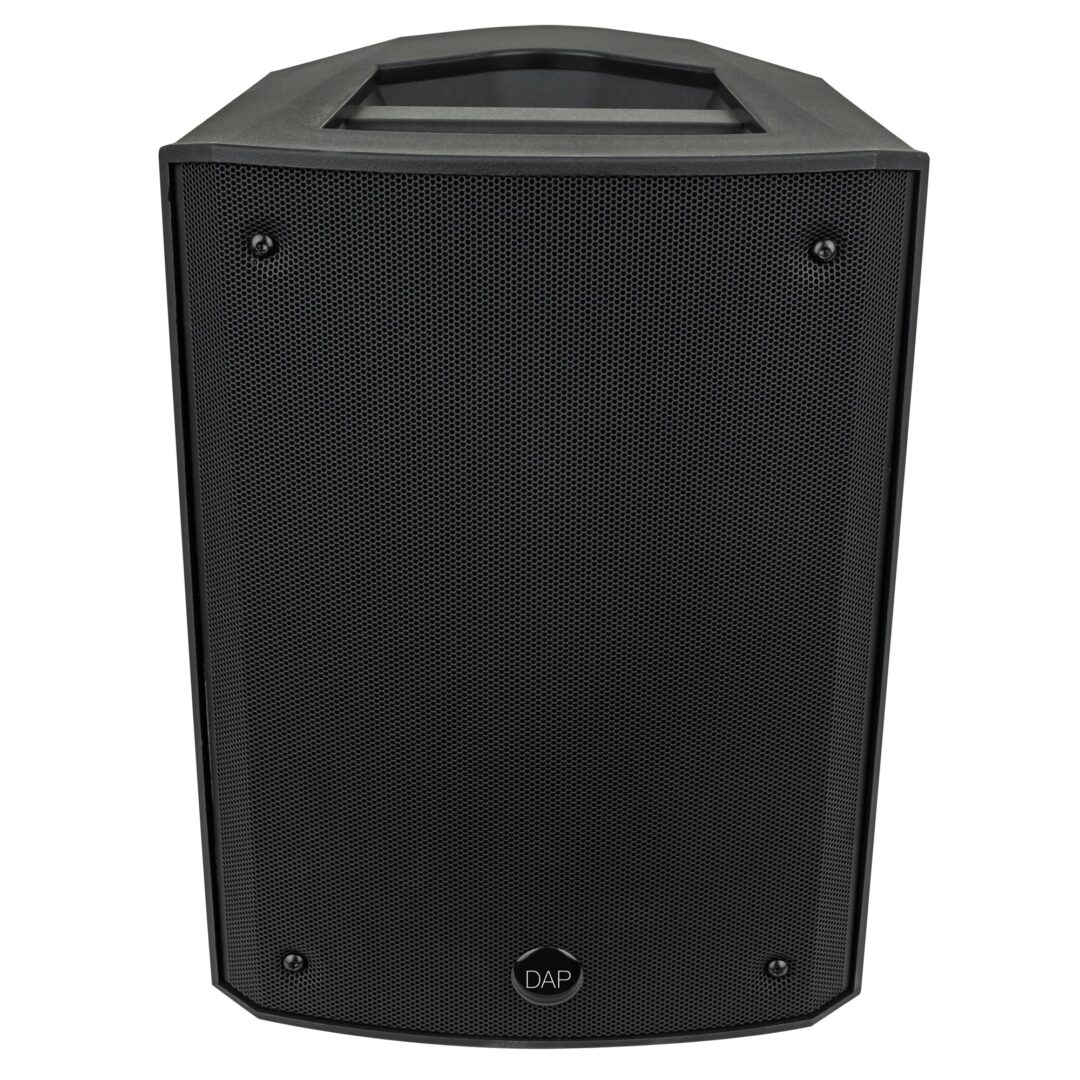

The DAP PSS-106 Battery Speaker is a versatile mobile audio solution with a nice sounding 6.5″ woofer and 1″ tweeter. The design allows it to be used as a tilt-back floor monitor or as a small PA loudspeaker with a 35-mm pole mount. Two switches on the back and side automatically detect its application and adjust the frequency curve appropriately.

Equipped with a lightweight 2-channel class-D amplifier, the PSS-106 has inputs for mic, line, instrument, aux, and Bluetooth signals, and a built-in media player for SD cards and USB sticks. A dedicated wireless microphone, microphone receiver and beltpack are optional for providing an all-in-one audio solution.

The battery lasts up to 5 hours at full output and is fully rechargeable in 5 hours. This makes it a very convenient and trustable mobile solution for a wide variety of applications.

Please note that you can opt for a complete set including the PSS-106 battery speaker and the WM-10 wireless handheld microphone.

Specifications

Inputs

Mono Inputs 2
Mono Input Connector 3-pin XLR, TS unbalanced 6.3 mm
Balanced Mono Input Maximum Level 1 dBu
Auxiliary Inputs 1
Auxiliary Input Connector TRS balanced 3.5 mm
Unbalanced Auxiliary Input Maximum Level 10 dBv

Playback

Supported Audio Files MP3
Media Input/Output USB-A, SD Card

Audio Specifications

Amp Technology Class D
Speaker System Battery Operated
Maximum SPL at 1 m 110 dB
Frequency Response Minimum 70 Hz
Frequency Response Maximum 20000 Hz
Frequency Response (-6 dB) Minimum 70 Hz
Frequency Response (-6 dB) Maximum 20000 Hz
Crossover Frequency (High) 1900 Hz
Woofer Diameter 6.5 “
Woofer Voice Coil Diameter 1.5 “
Compression Driver Diameter 1 “
Compression Driver Magnet Type Neodymium

Sound Editing

Parametric Microphone Equalizer 2 Bands
Microphone Input Equalizer Gain Range 10 dB
Microphone Input Fixed Frequencies 100, 10.000 Hz
Parametric Channel Equalizer 2 Bands
Input Channel Equalizer Gain Range 10 dB
Input Channel Fixed Frequencies 100, 10.000 Hz
Built-in FX Yes
FX Types Reverb

Wireless Specifications

Bluetooth Audio Profile A2DP

Battery

Battery Type Lithium ion
Battery Voltage 25.9 V
Capacity 2.2 Ah
Runtime @Full 5 h
Runtime Average 8 h
Charging Time 5 h

Control and Programming

Display LED

Electrical Specifications and Connections

Power Supply 220-240 V AC 50 Hz
Power Consumption 100 W
Fuse 1.6 A
Power Connector In IEC

Mechanical Specifications

Height (mm) 323 mm (12.717″)
Width (mm) 240 mm (9.449″)
Depth (mm) 265 mm (10.433″)
Material ABS
Weight 5.9 kg
IP Rating IP20 (indoor use only)

Product Properties

VOX Yes
Pole Mount 35 mm
Cooling Convection
Electronic Protection Clip limiter, Overheat, Overload, Thermal
LED Indicators Battery status, BT Pairing, Charging, Power, Protect, Signal
Speaker Grille Material Steel
Speaker Handle Positions Top
Castors None

Thermal Specifications

Maximum Ambient Temperature 40 °C (104 °F)
Minimum Ambient Temperature 5 °C (41 °F)

Package Contents: DAP Battery Powered Active Speaker PSS-106, IEC cable, Manual.
