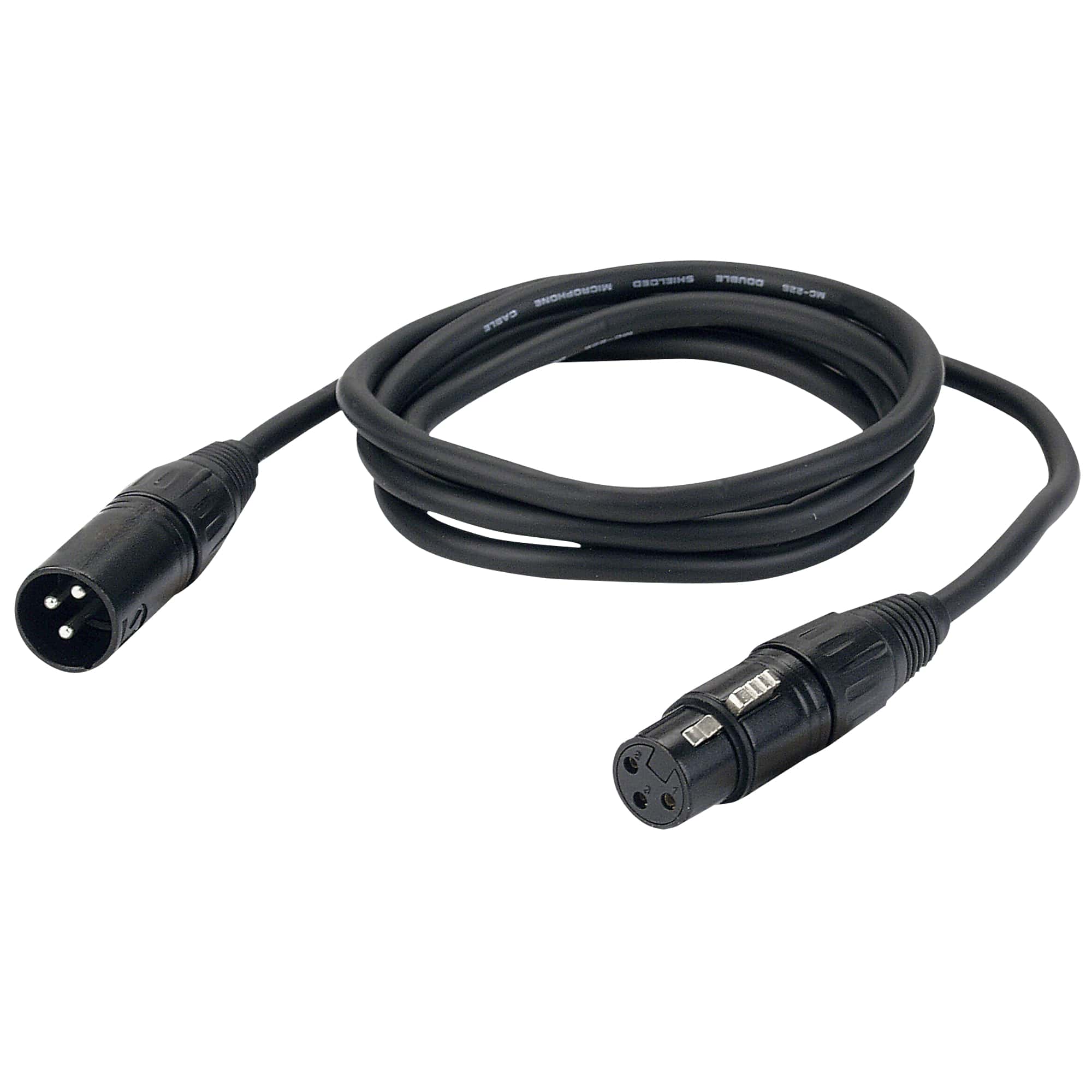

DAP līdzsvarots audio kabelis XLR vīrišķais – XLR mātīte FL0110, 10m

Specifications

Electrical Specifications and Connections

Flashover Voltage 30 V
Impedance 110 Ω
Connector 1 XLR 3P
Connector 2 XLR 3P
Cable Length 10 m
Pins 3
Conductor Resistance 90 Ω/km (144.84 Ω/mile)
Conductor Capacitance 60 pF/m (18.29 pF/ft)
Capacity Inner Conduct. Shield/Inner Conduct. 78 pF/m (23.77 pF/ft)
Outer Cable Diameter 6 mm (0.236″)
Outer Isolation Diameter 6 mm (0.236″)
Outer Isolation Type PVC

Mechanical Specifications

Weight 0.54 kg (1.19 lb)
IP Rating IP20 (indoor use only)
Material PVC
Colour Black

Product Properties

Contact Type Copper
1st Shield Oxygen Free Copper
Shield Resistance 25 Ω/km (40.23 Ω/mile)
Conductors 2

Thermal Specifications

Maximum Ambient Temperature 60 °C (140 °F)
Minimum Ambient Temperature -20 °C (-4 °F)

Package Contents: DAP Balanced Audio Cable XLR Male – XLR Female FL0110, 10m.
