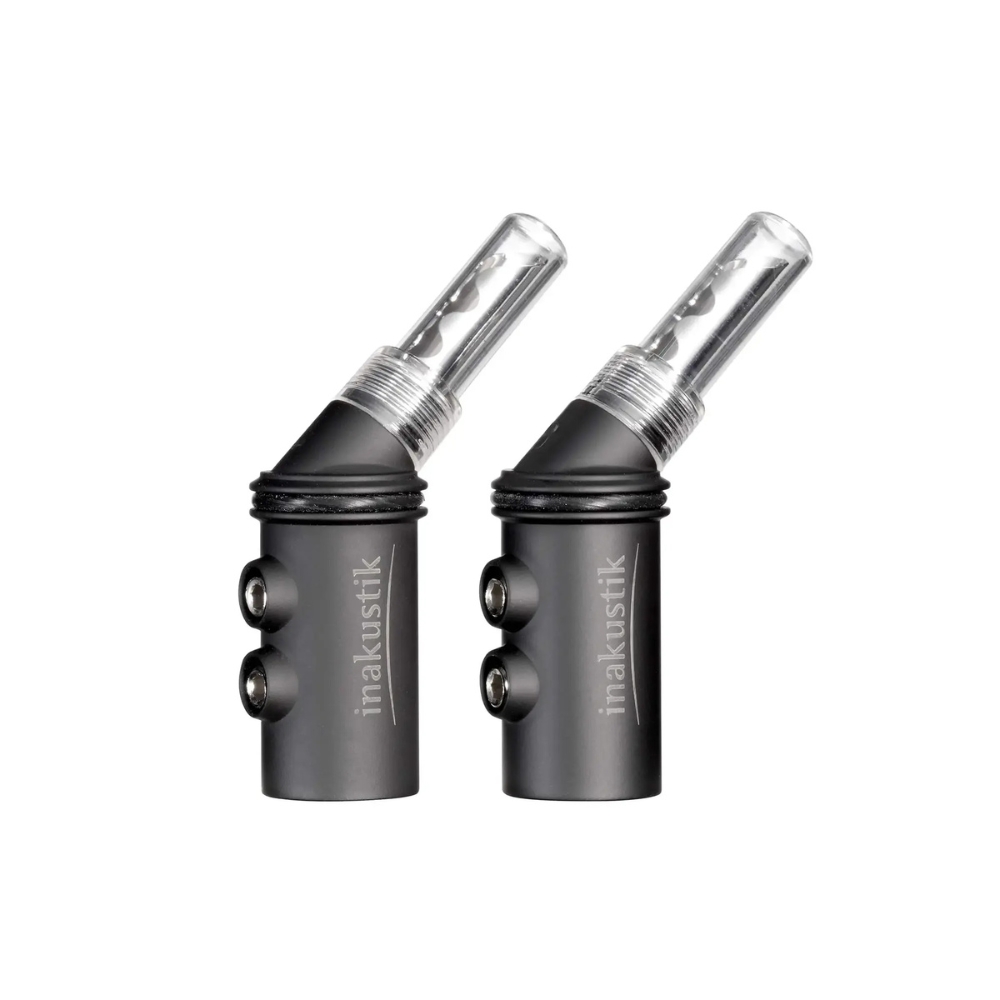

In-Akustik Skaļruņu Kabeļa Savienotājs Referenz, BFA-103 Banana 45°, 4 mm, 2 gab.

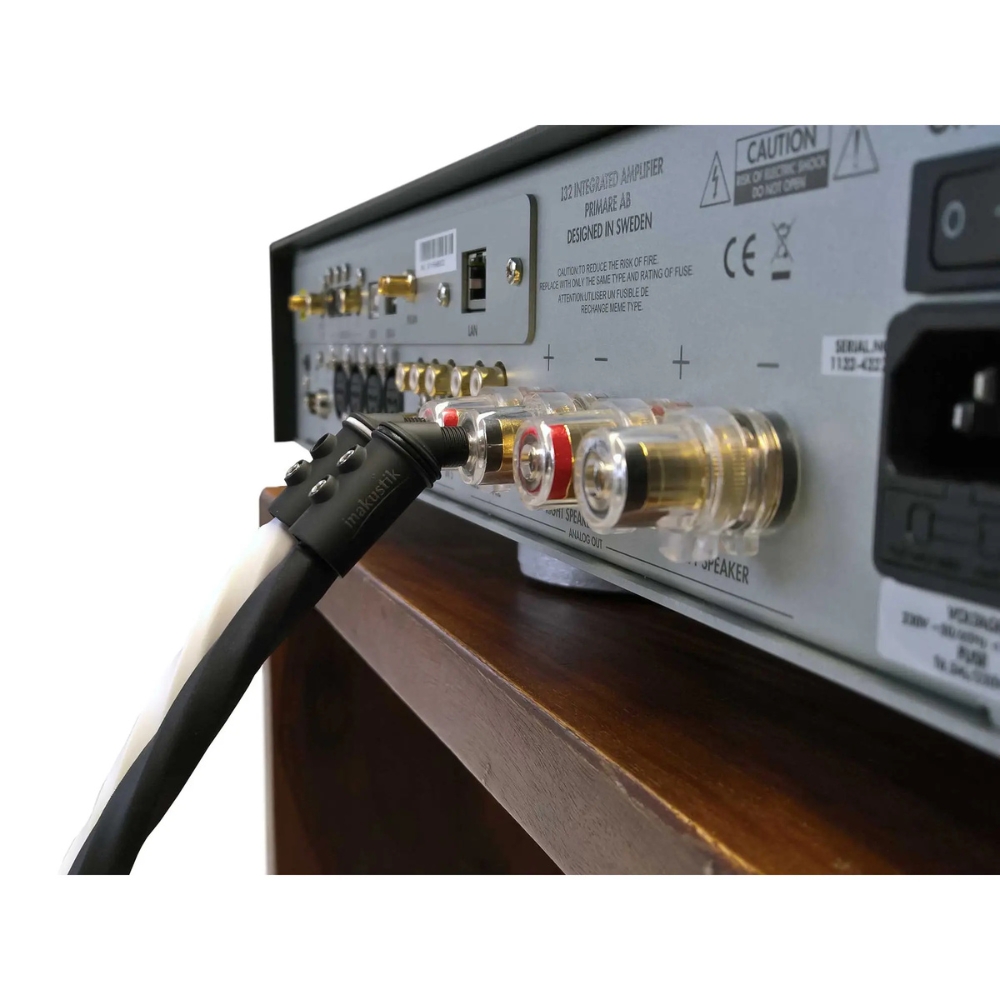

The angled shape of the new BFA-103 banana plug relieves the strain on the contact sleeve and the device socket. This also allows heavy high-end cables to be connected without damaging the plug or the connection terminals on the devices. In addition, the angled cable routing saves space behind the devices and speakers. The body of the plug consists of a solid socket with two hex screws and can accommodate cables with a cross-section of up to 10 mm² or a diameter of up to 7.5 mm. All contact elements are coated with rhodium and guarantee long-lasting low contact resistance.

Specifications

Application: Connector loudspeaker cable
Cable diameter: 11.2 mm
Coding: Black | White
Conductor cross-section: 10 mm²
Conductor receptacle: Up to 10 mm²
Conformity: RoHS
Connector assembly: Screw contacts (socket screws)
Contact enhancement: Rhodium-coated
Contact material: Beryllium copper
Dimensions: 45 x 15 mm (L x D)
Product group: Loudspeaker cables
Product category: Speaker cable accessories
Quality: Referenz
Connector: Banana plug 4.0 mm
Connector highlight: 45° angled
Hollow tip
Fully insulated

Package Contents: In-Akustik Speaker Cable Connector Referenz, BFA-103 Banan 45°, 4 mm, 2 Pcs.
