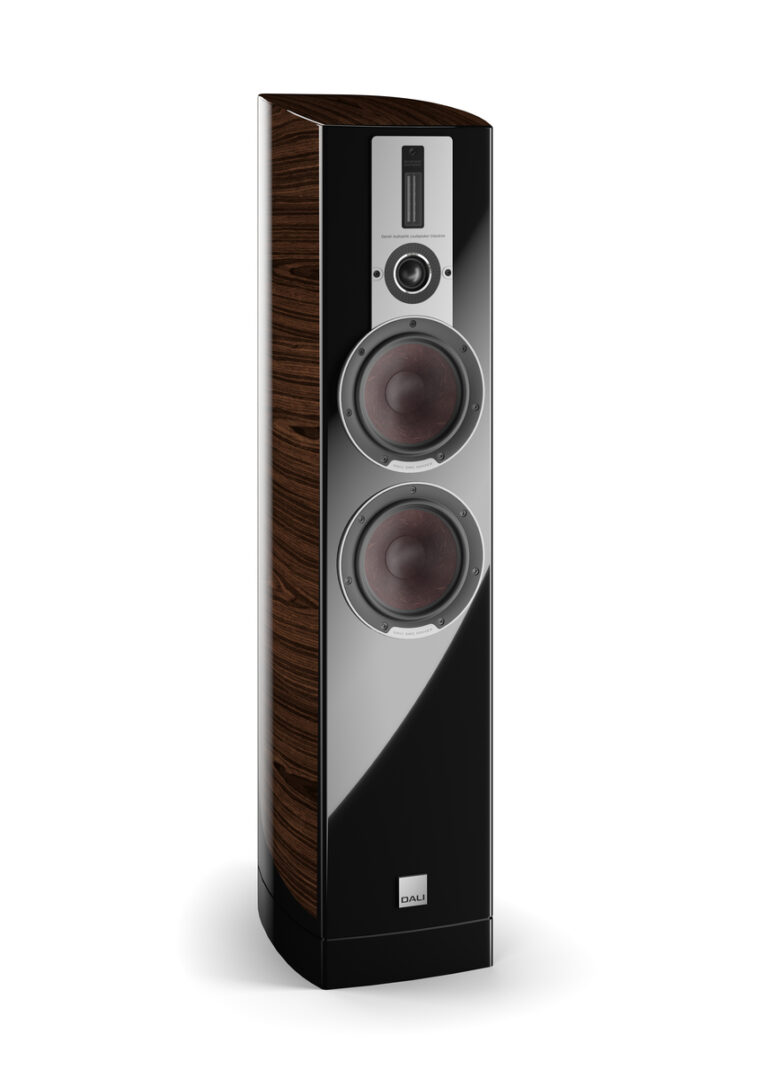

DALI grīdas skaļrunis Epicon 6, riekstkoks, 1 gab

PATENTED SMC

Our patented Soft Magnetic Composite (SMC) is the heart of the magnet motor system, minimising coloration and distortion.

MULTILAYER LAMINATE

6 layers of MDF form a rigid construction that reduces cabinet resonances, while the rounded form practically eliminates standing waves.

IN-HOUSE WOOFERS

The latest generation of wood fibre based woofers are developed and manufactured at our production facilities in Denmark.

HYBRID TWEETER

Optimised for the EPICON series, featuring an extremely smooth and wide horizontal dispersion.

A LASTING IMPRESSION

REDEFINING LOUDSPEAKER CONVENTIONS

Allow sensational musical moments to live on in the comfort of your own home with the revolutionary EPICON 6. Designed to make a lasting impression, the exterior of the loudspeaker is as captivating to the eye as the sound is to the ear. Featuring two 6½” patented SMC bass drivers, the unique Linear Drive Magnet System as well as our signature planar/soft dome hybrid tweeter, the EPICON 6 breaks with traditional loudspeaker conventions.

PATENTED SMC

REDUCING DISTORTION FOR SUPERIOR SOUND

For years, designing magnet systems has been a DALI speciality. For the EPICON 6, we decided to challenge the highest performance standards and to take magnet system design further than ever before. The answer was Soft Magnetic Composite (SMC) material, which combines extremely high magnetic conductivity and very low electrical conductivity to deliver a dramatic reduction in distortion caused by mechanical loss in the magnet system.

DALI HYBRID TWEETER

THE MASTER OF WIDE DISPERSION

The DALI hybrid tweeter module features a soft dome tweeter and a planar tweeter that combine to create an amazing rendition of high-frequency details. The voice-coil used in the EPICON 6 soft dome is extremely light and agile, which helps it deliver a broader bandwidth. The planar tweeter is the master of wide dispersion and, in combination with the soft dome, reaches as low as 2.5 kHz, providing continuous wide dispersion as the soft dome becomes more directional at higher frequencies. This extreme bandwidth and ultra-wide dispersion is an important part of DALI’s sound philosophy.

SPECIFICATIONS

Frequency Range [+/- 3] dB [Hz]: 35-30.000
Sensitivity [2.83V/1m] [dB]: 88.0
Nominal Impedance [ohms]: 5
Maximum SPL [dB]: 110
Recommended Amp. Power [Watts]: 50 – 300
Crossover Frequencies [Hz]: 700/2.550/15.000
Crossover Principle: 2½+½-way
High Frequency Driver: 1 x 29 mm soft dome, 1 x 10 x 55 mm ribbon
Low Frequency/Midrange Driver(s): 2 x 6½”
Enclosure Type: Bass reflex
Bass Reflex Tuning Frequency [Hz]: 32.5
Connection Input(s): Bi-wire / Bi-Amp
Recommended Placement: Floor
Recommended Distance from rear wall to speaker’s rear side [cm]: >25
Magnetic Shielding: NO
Dimensions (H x W x D) [mm]: 1025 x 232 x 441
Dimensions (H x W x D) [inches]: 40.35 x 9.13 x 17.36
Dimensions with base (H x W x D) [mm]: 1062 x 320 x 459
Dimensions with base (H x W x D)[inches]: 41.69 x 12.60 x 18.07
Neto weight: 30.0 kg
All technical specifications are subject to change without notice.

Package Contents: DALI Floorstanding Speaker Epicon 6, Walnut, 1Pc, Spike Set, Terminal Link Set, Base plate, Polishing cloth, Rubber feet, Manual.
