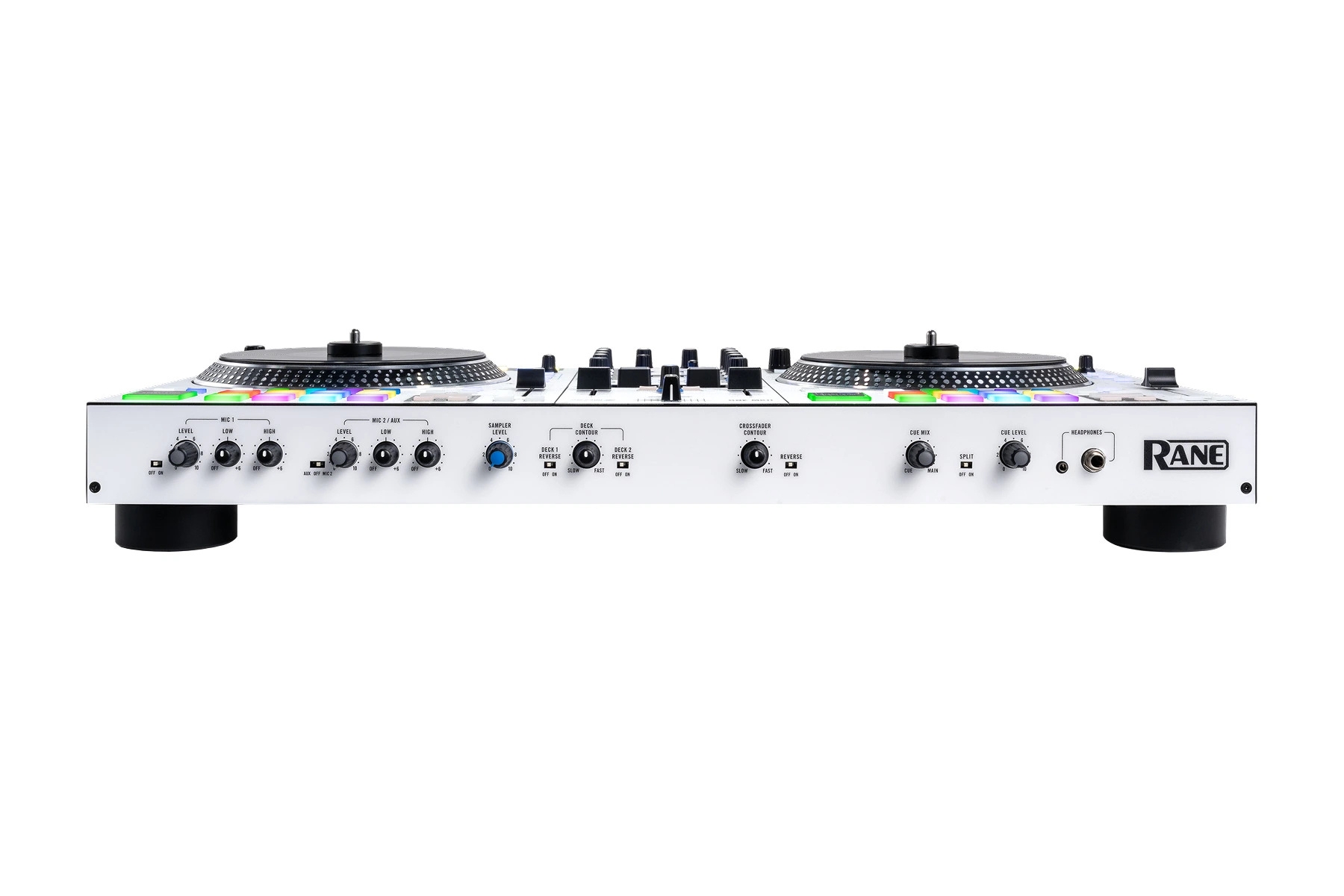

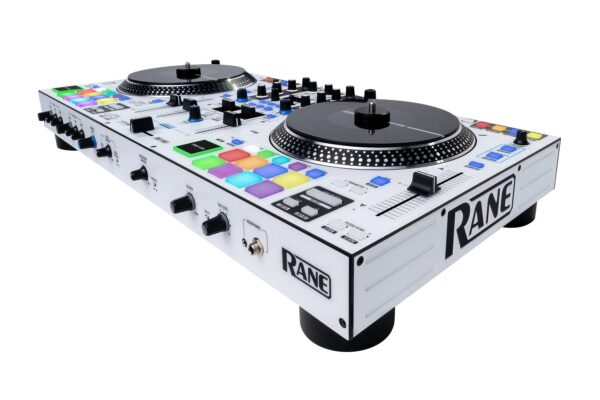

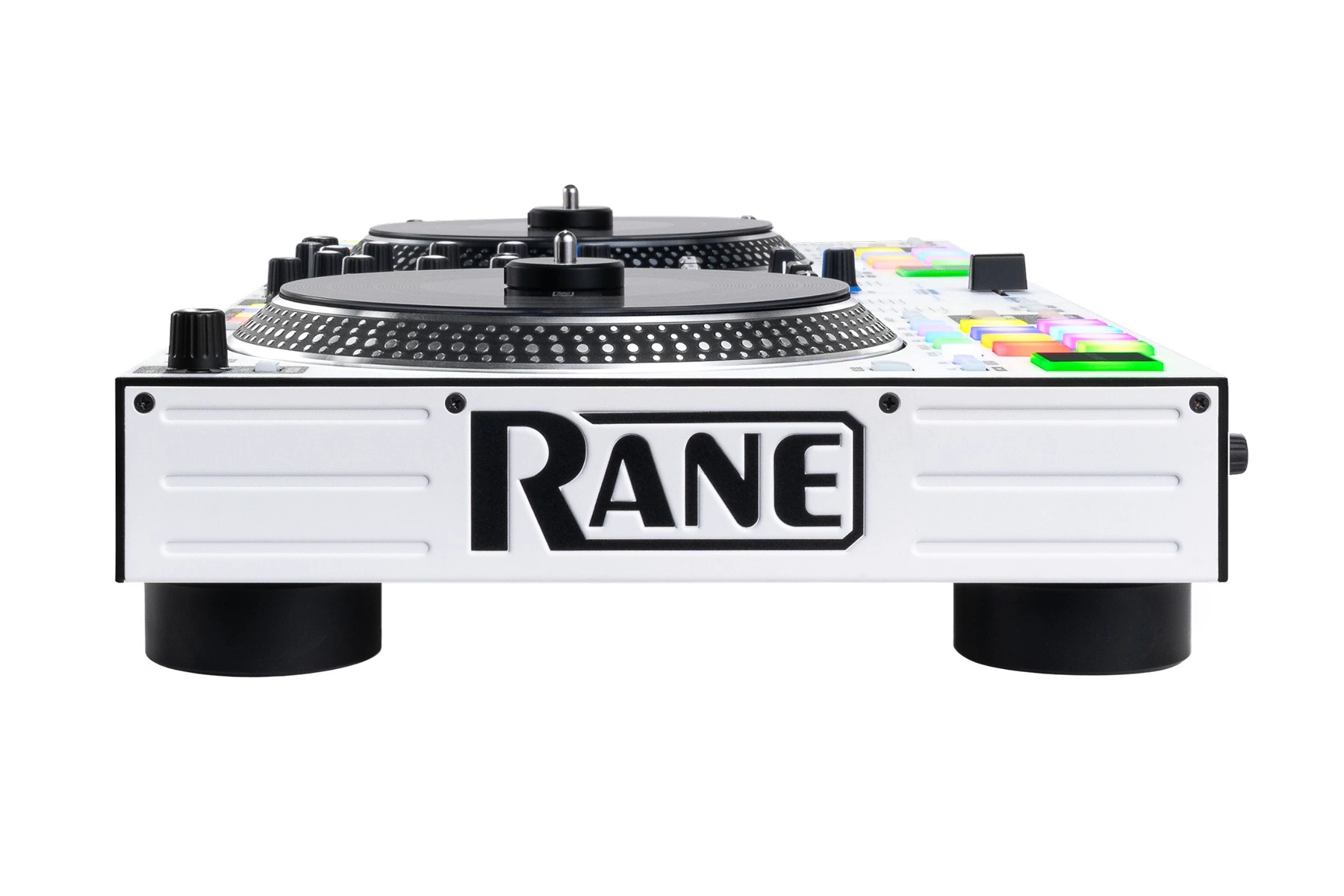

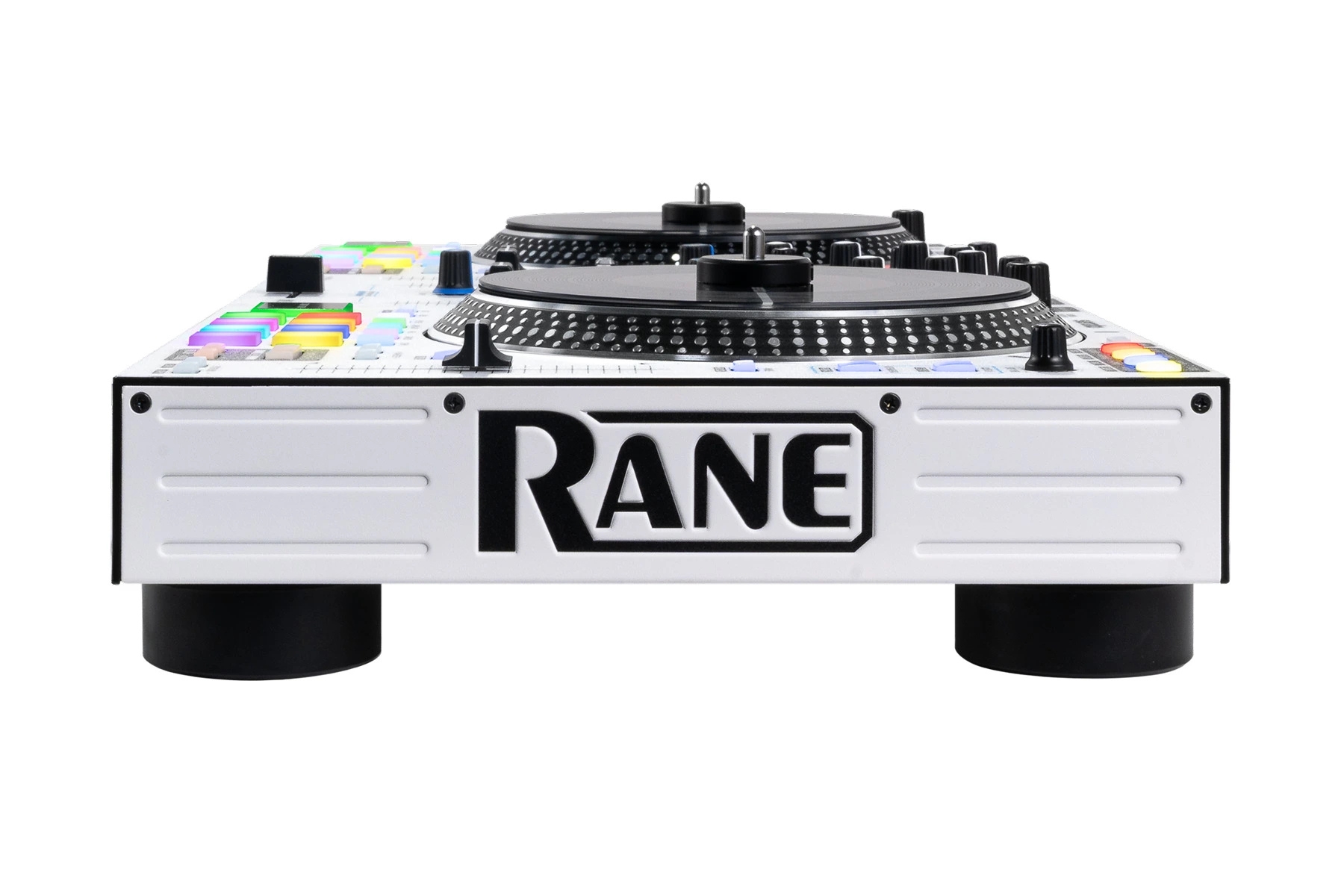

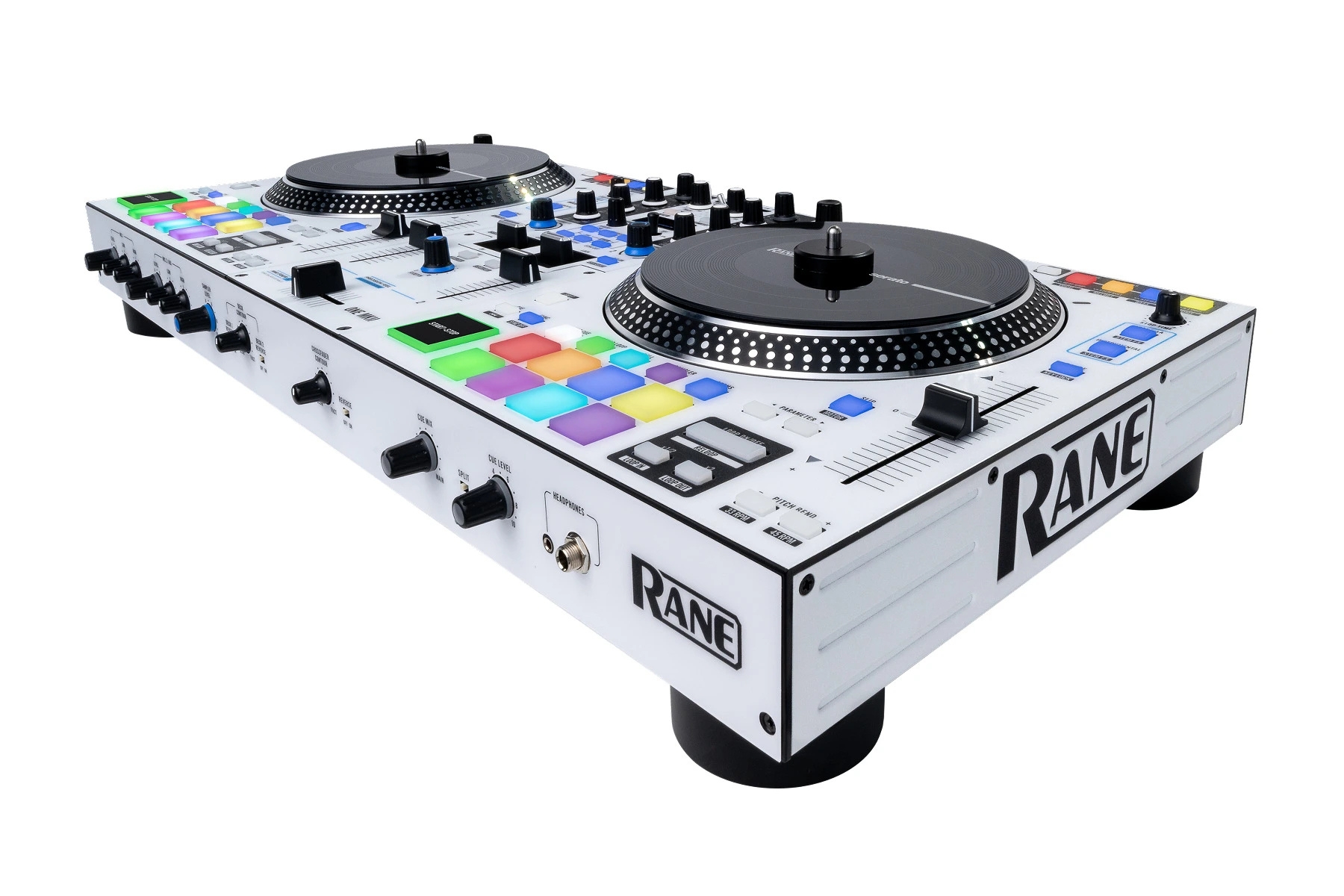

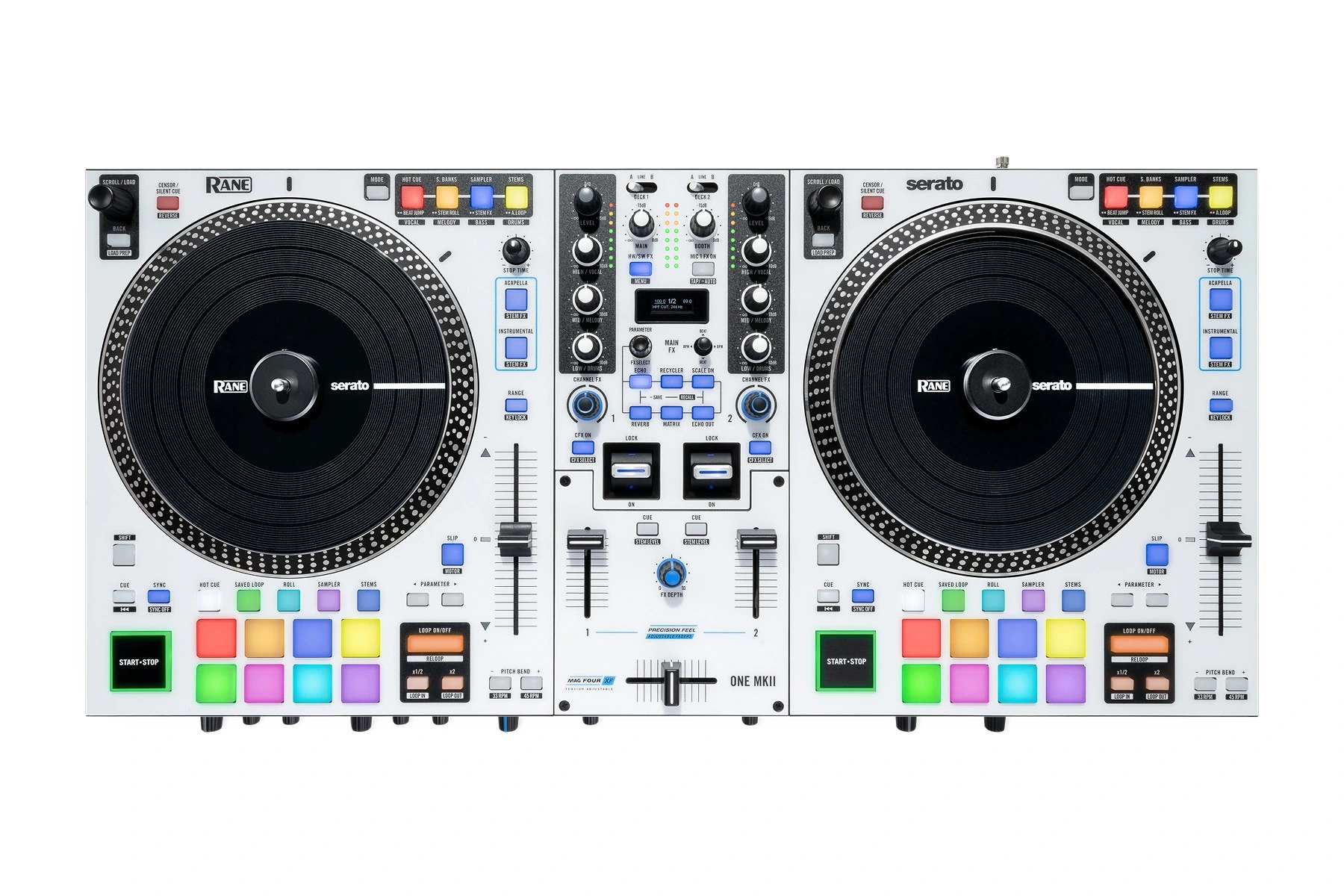

Rane motorizētais DJ kontrolieris ONE MKII

Technical Specifications

Digital Audio

Converters: Cirrus Logic, 24-bit PCM, 48 kHz
Digital Signal Processing: 32-bit, floating point, double precision
Dynamic Range (A-weighted, unity gain):
ADC: 113 dB
DAC: 113 dB
CD Input to Analog Output: 110 dB
CD Input to USB Output: 113 dB
USB Input to Analog Output: 113 dB

Inputs

Microphone 1/2 (Combo XLR/1/4” [6.35 mm] TRS, Mic/Line switchable)
Analog Gain: 25 dB
Maximum Input: 110 mV
Gain Trim: Off to +26 dB (unity at center)
Tone Control: 2-band
Aux Input (RCA stereo pair)
Maximum Input: 4 Vrms
Dynamic Range (A-weighted): 114 dB
Gain Trim: Off to +12 dB
Tone Control: 2-band
CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)

CD

Maximum Input: 4 Vrms
Gain Trim: Off to +12 dB
Tone Control: 3-band, full-cut to +10 dB
THD+N (20 kHz BW @ 1 kHz): 0.004%
Phono
RIAA Curve: +/- 0.25 dB
Gain (@ 1 kHz): 31.5 dB
Maximum Input (@ 1 kHz): 106 mV
Dynamic Range (A-weighted): 102 dB

Outputs

Main Outputs (XLR)
Gain Trim: Off to 0 dB
Maximum Output: 8 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat
Booth Outputs (XLR)
Gain Trim: Off to 0 dB
Maximum Output: 8 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat
Master Outputs (RCA stereo pair)
Maximum Output: 4 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat
Headphone Outputs (1/4”/6.35 mm and 1/8”/3.5 mm TRS)
Maximum Output Voltage: 4 Vrms (no load)
Output Power: 50 mW (50 ohms)
Dynamic Range (A-weighted): 108 dB

Pads

16x multi-color back-lit pads (8 per deck, 10 modes each)
Secondary performance pad buttons with 8 pad modes

Faders

(1) MAG FOUR tension-adjustable crossfader with independent Contour and Reverse controls
(2) PRECISION FEEL tension-adjustable faders with Contour knob and Reversal switches

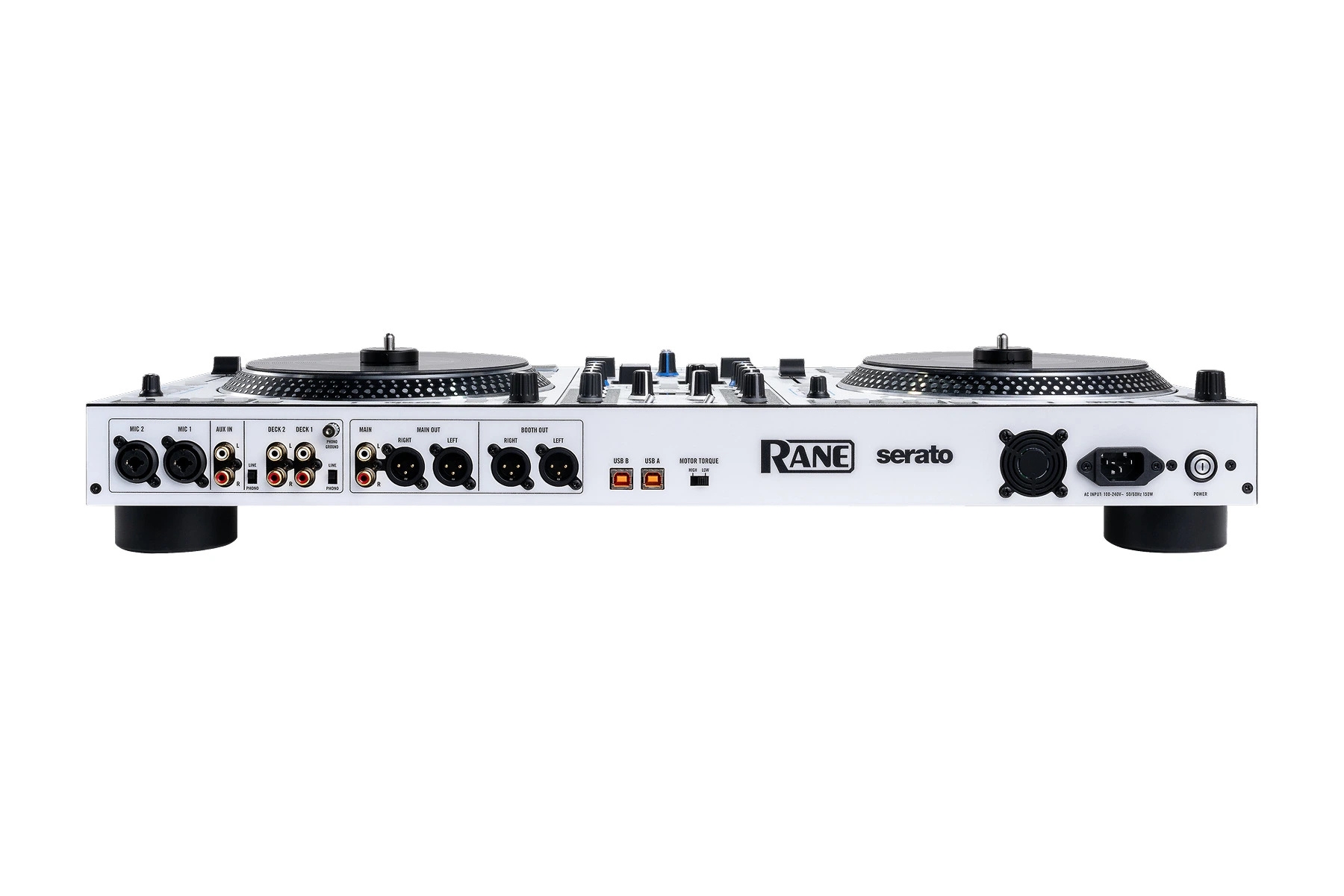

Connectors

(2) XLR outputs (Main)
(2) XLR outputs (Booth)
(1) RCA stereo output pair (Master)
(2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1-2)
(2) RCA stereo input pairs (Deck 1-2)
(1) RCA stereo input pair (Aux)
(1) 1/4” (6.35 mm) TRS output (Headphones)
(1) 1/8” (3.5 mm) TRS output (Headphones)
(2) USB Type-B ports
(1) IEC power cable input

Power

Connection: IEC
Voltage: 100–240V, 50/60 Hz
Consumption: 50 W

Dimensions

W x D x H: 674 x 345 x 124.3 mm

Weight

11.14 kg

Package Contents: Rane Motorized DJ Controller ONE MKII, ONE MKII IEC Power Cable (2), Black Felt Slip Mats (4), Washers, USB-B to USB-C Cable, DeoxIT Fader Lube (2ml), Serato P’nT DJ Expansion Pack Voucher, Rane Sticker Sheet, SoundSwitch Download Card, Setup Card, Quickstart Guide Safety & Warranty, Manual.
