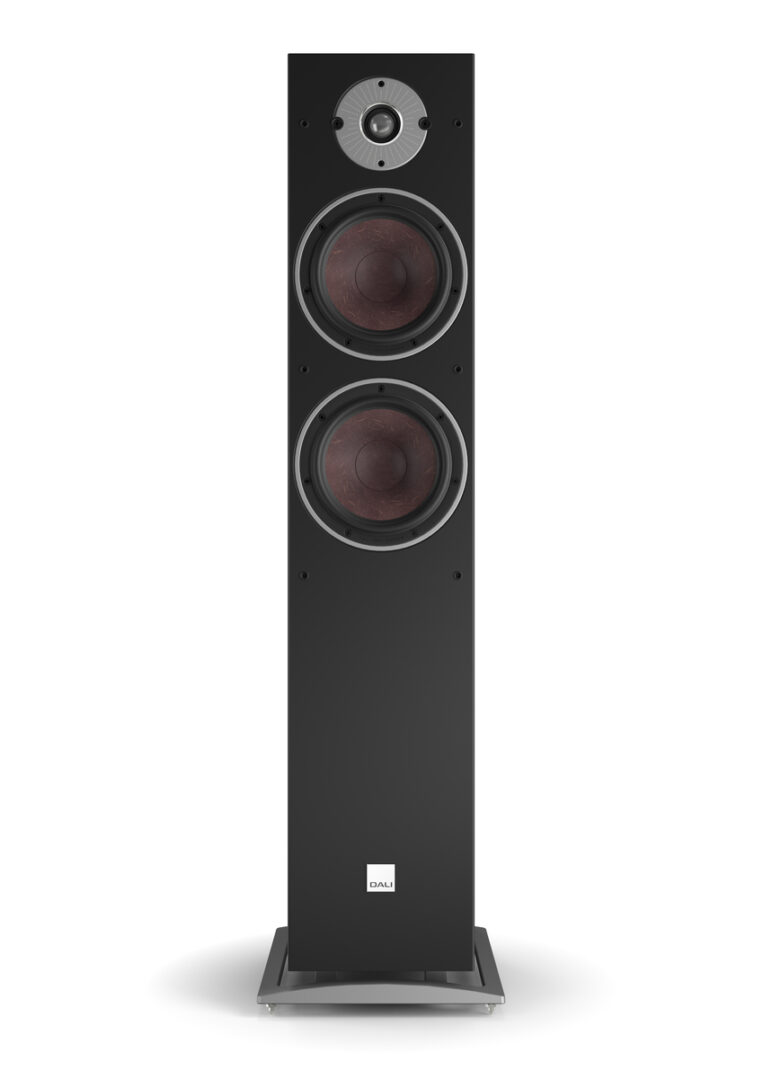

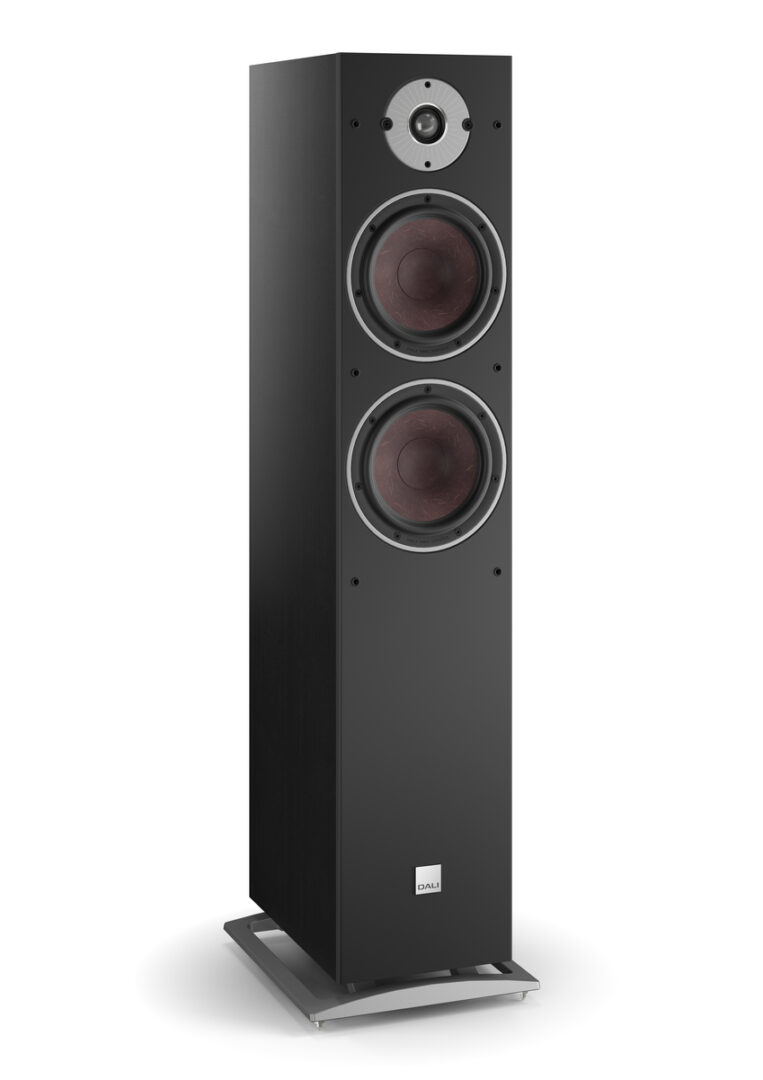

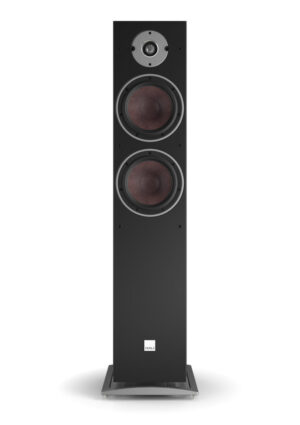

DALI Grīdas skaļrunis Oberon 7, melni pelni, 1 gab

EASY TO POSITION

The wide dispersion pattern of the drivers ensures well-integrated sound that drastically reduces off-axis harmonic distortion.

WOOD FIBRE CONES

The stiff, lightweight structure of the reinforced wood fibre cone reproduces details that are uncoloured and highly accurate.

CONTEMPORARY DESIGN

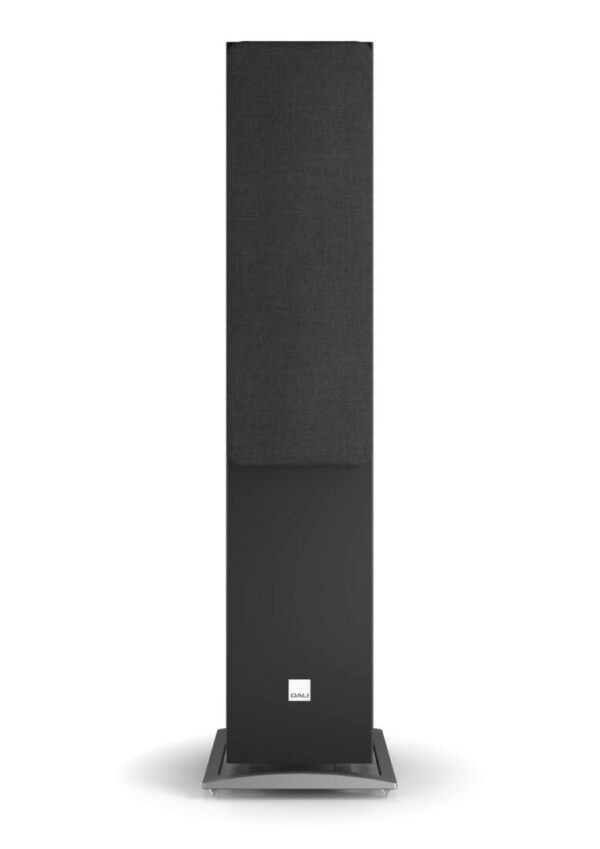

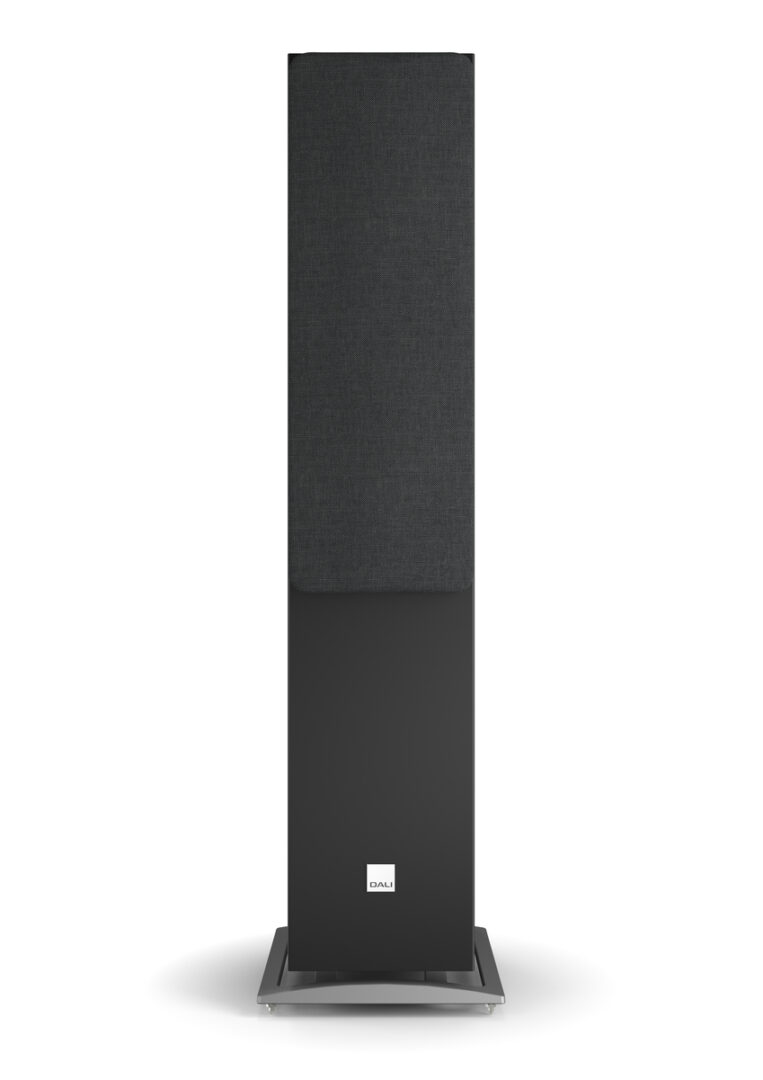

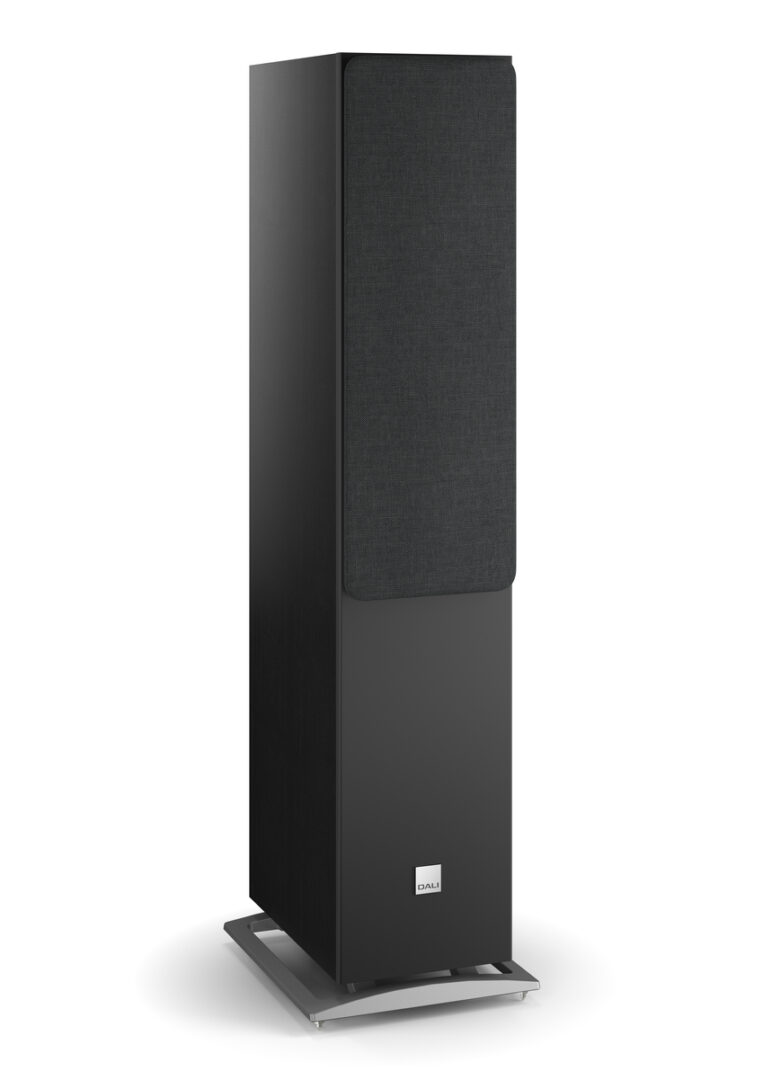

The rounded edges and grille fabric add a lighter and more contemporary look, enhanced by the elegantly shaped aluminium base on the floorstanding models.

PATENTED SMC

The woofer magnet’s iron pole-piece includes a patented SMC disc that greatly reduces mechanical distortion for a relaxed midrange and lots of detail.

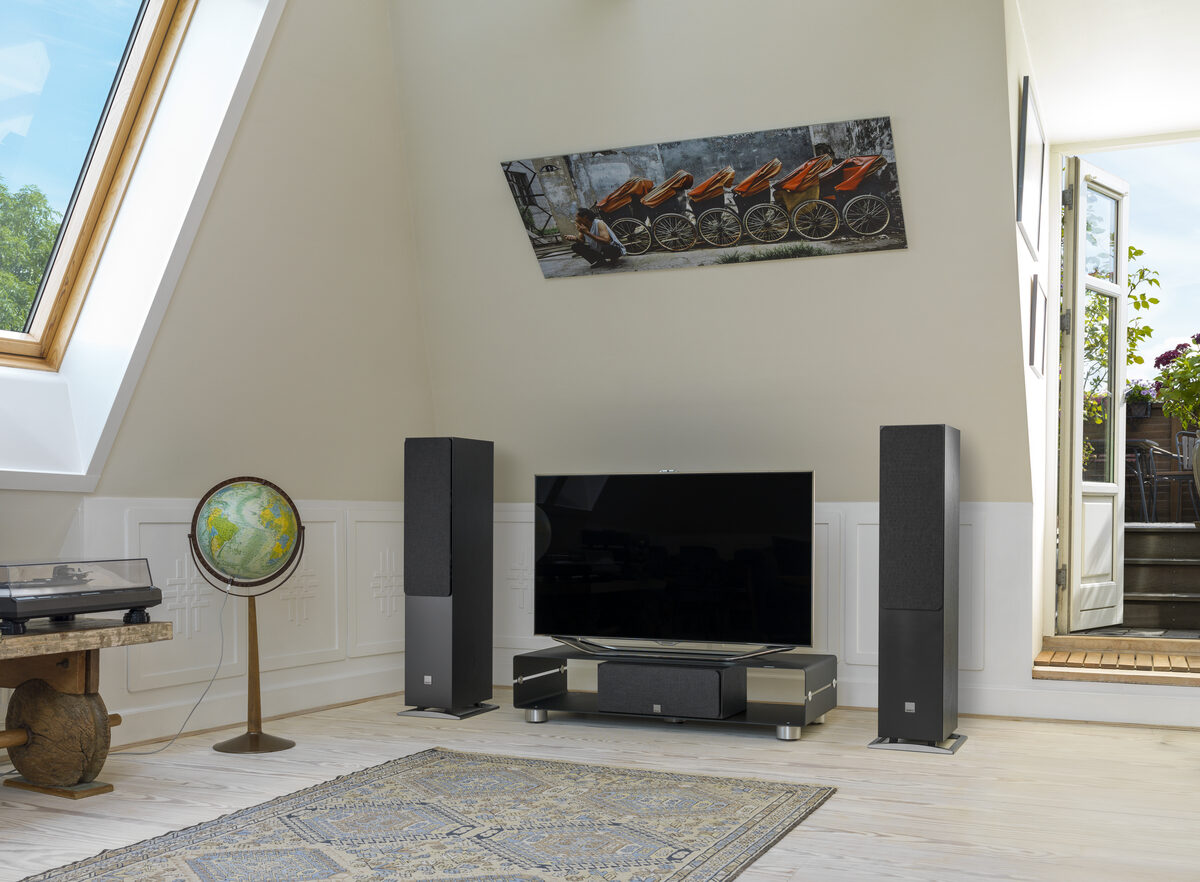

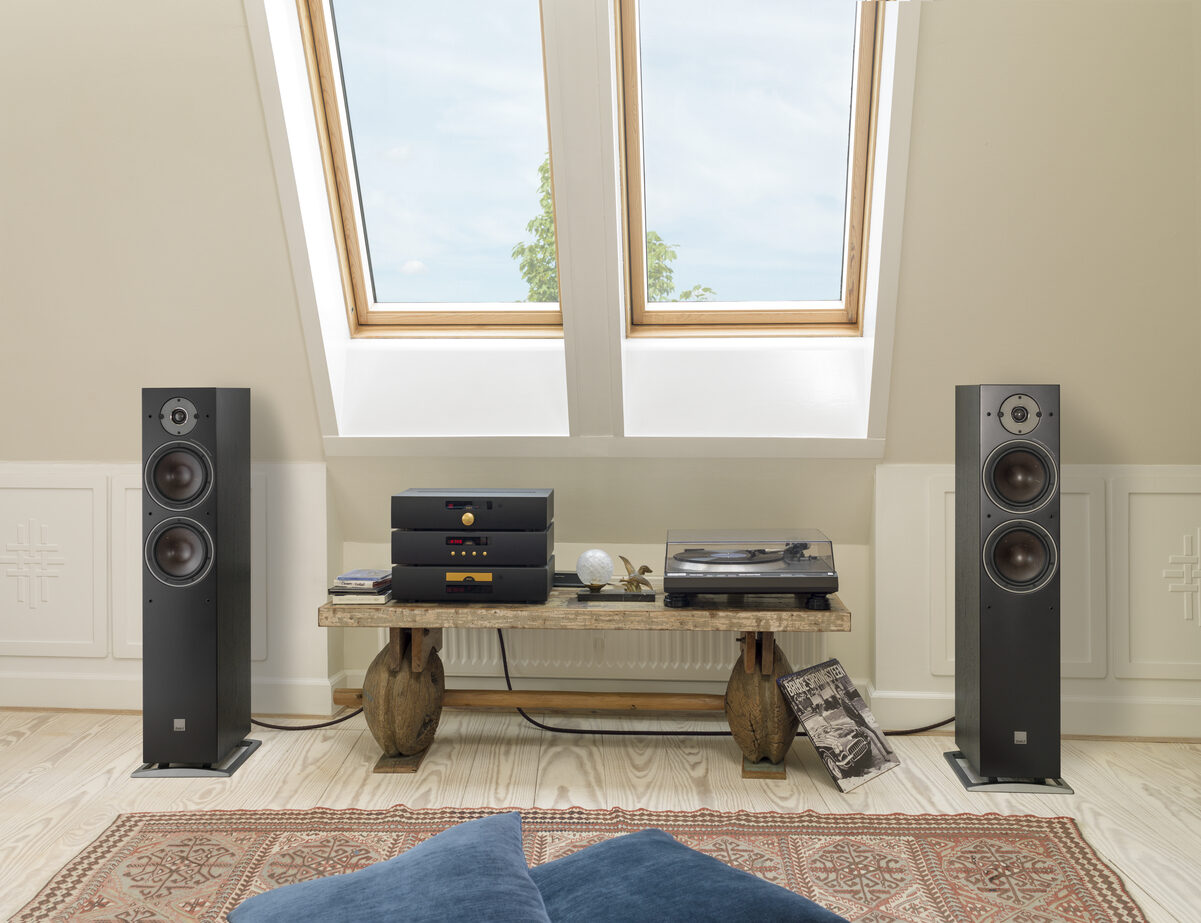

EASY INTEGRATION

WELL-INTEGRATED SOUND, EVEN OFF AXIS

With the OBERON 7, we’ve made it easy to integrate it into any room. The driver materials and geometry are purpose-designed to achieve a wide dispersion pattern. The same principles have been applied in the design of the crossover to deliver a well-integrated sound, even when listening at a significant off-axis angle. An added benefit of a wide dispersion pattern is that harmonic distortion and diffractions causing frequency distortion are significantly reduced this is also the reason why DALI speakers are not designed to be toed in.

NEW WOOD FIBRE CONE

OPTIMISED WITH NEW WOOD FIBRE STRUCTURE

The OBERON 7 features two 7″ low loss woofers optimised with a new wood fibre structured cone dedicated to reproducing the delicate midrange and bass frequency area. Constructed from a blend of fine-grain paper pulp reinforced with wood fibres, the woofer creates a stiff, yet lightweight structure. And when combined with the low loss surround and spider suspension, the OBERON 7 woofer reproduces the most minute details in the signal, unfiltered and with high accuracy.

REDUCING DISTORTION

PATENTED SMC (SOFT MAGNETIC COMPOSITE)

The use of SMC (Soft Magnetic Composite) in the OBERON 7 greatly reduces mechanical distortion caused by hysteresis and eddy currents. The result is a magnet motor system with a drastic reduction in third-order distortion, allowing the OBERON 7 to deliver extended listening pleasure, a relaxed midrange and a surprising amount of detailing in its class.

OVERSIZED SOFT DOME

COMBINING PROVEN TECHNOLOGIES & FEATURES

The oversized 29 mm ultra-lightweight soft dome tweeter was specifically developed for the OBERON series, combining well-proven technologies from our existing DALI speakers with new features. The large size of the membrane lets the tweeter generate higher sound pressure with less excursion, keeping the voice-coil motion to a controlled minimum. The tweeter front plate near the dome has been designed with similar geometry to the OPTICON and RUBICON tweeters to create the optimal working conditions for the soft dome. This results in extended frequency response, wide dispersion and low colouration.

OPTIMISED CABINET

CABINET DESIGN BEYOND ‘JUST’ GOOD LOOKS

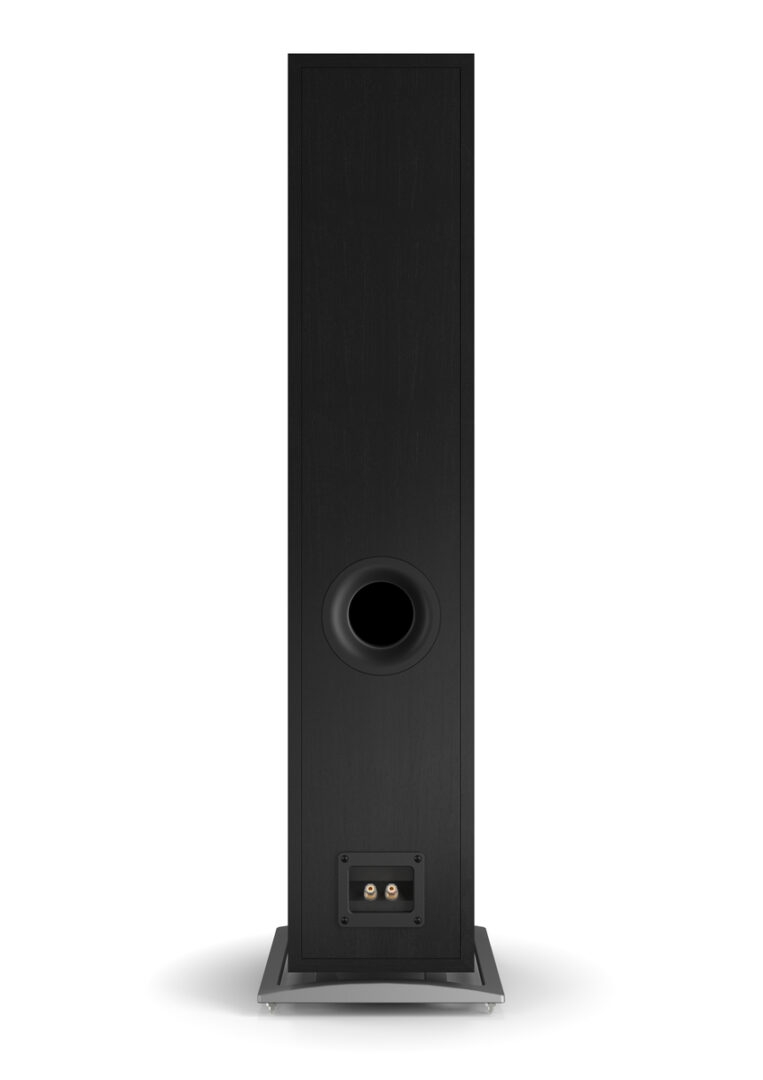

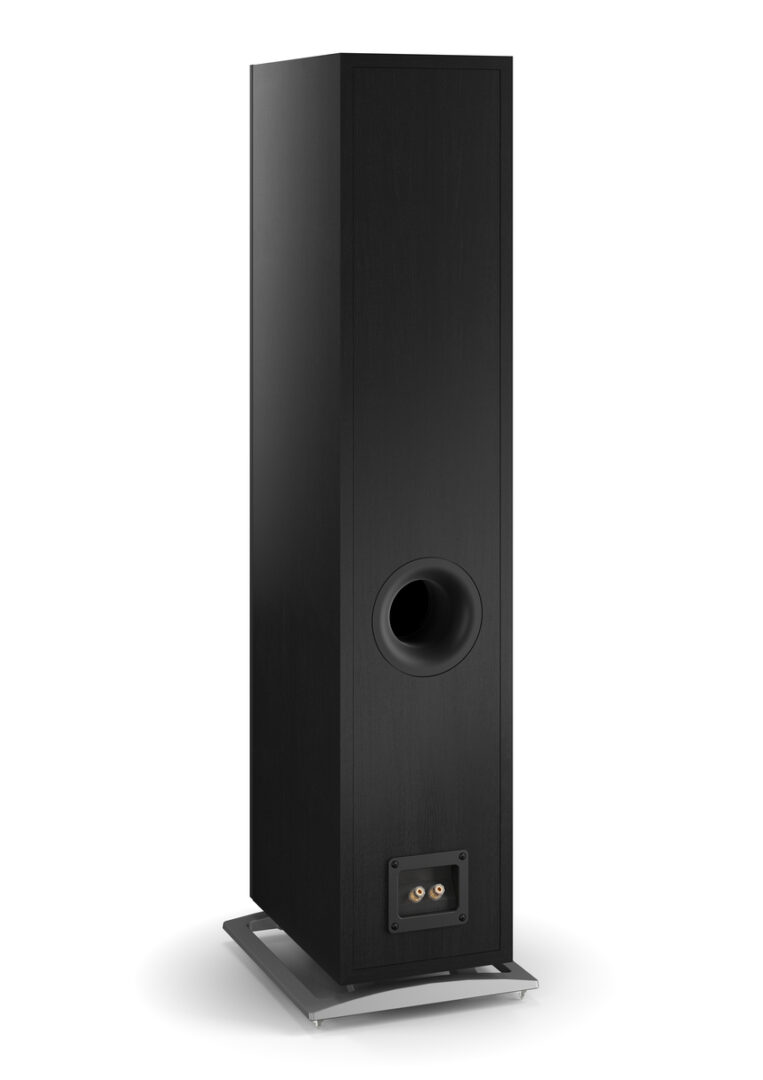

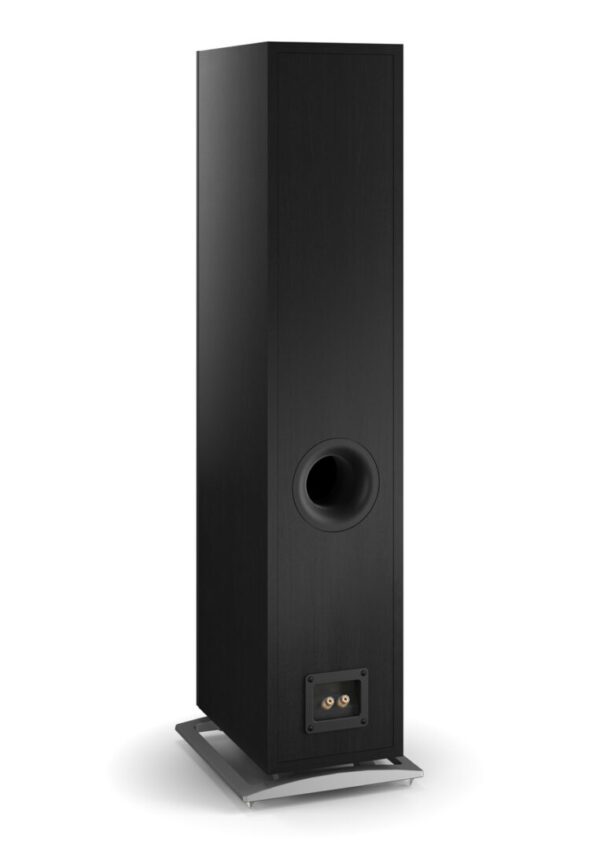

The OBERON 7 cabinet is constructed from a high density, CNC machined MDF board dressed in high-grade vinyl. The extremely rigid structure is achieved with solid bracings across the inside of the cabinet, which practically eliminates cabinet resonance. The bass ports at the rear of the cabinet optimise room integration by using a rear wall surface to improve bass performance. The elegantly shaped aluminium base also gives the floorstanding OBERON 7 a lighter, elevated look.

SPECIFICATIONS

Frequency Range +/- 3 dB [Hz]: 36 – 26,000
Sensitivity (2.83V/1m) [dB]: 88,5
Nominal Impedance [ohm]: 6
Maximum SPL [dB]: 110
Crossover Frequency [Hz]: 2,300
Crossover Principle: 2-way
Recommended Amplifier Power [Watt]: 30 – 180
High Frequency Driver: 29 mm Textile Dome
Low Frequency Driver/Mid-range Driver(s): 2 x 7” Wood Fibre Cone
Enclosure type: Bass Reflex
Bass Reflex Tuning Frequency [Hz]: 39,5
Connection Input: Single Wire
Recommended Placement: Floor
Distance from Wall [mm]/[inces]: 20 – 80 / 0.89 – 3.14
Dimensions with Base (H x W x D) [mm]: 1015 x 200 x 340
Dimensions with Base (H x W x D) [inches]: 39.96 x 7.87 x 13.38
Weight: 14,8 kg

Package Contents: DALI Floorstanding Speaker Oberon 7, Black Ash, 1Pc, Manual, Spikes, Rubber Feet, Front Grille.
