DALI iebūvējamais skaļrunis Phantom E-60 S

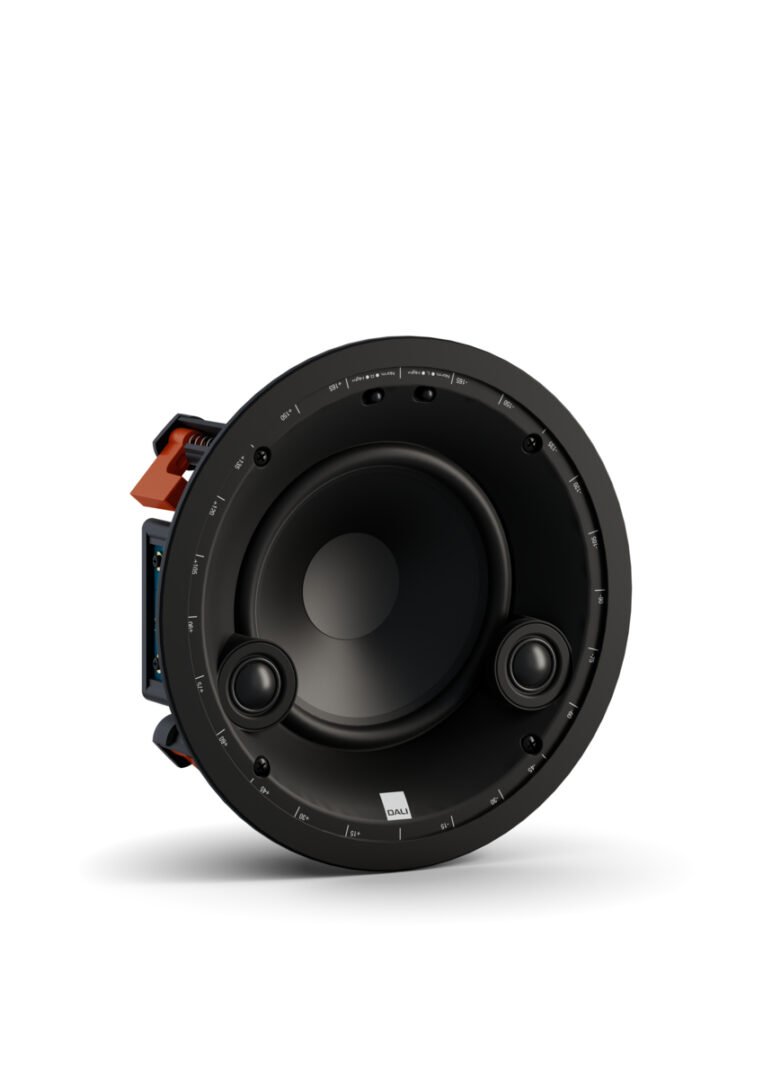

Easy Installation

The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place.

Functional Flexibility

The PHANTOM E speaker can be adjusted to deliver room-filling off-axis audio to almost any listening space.

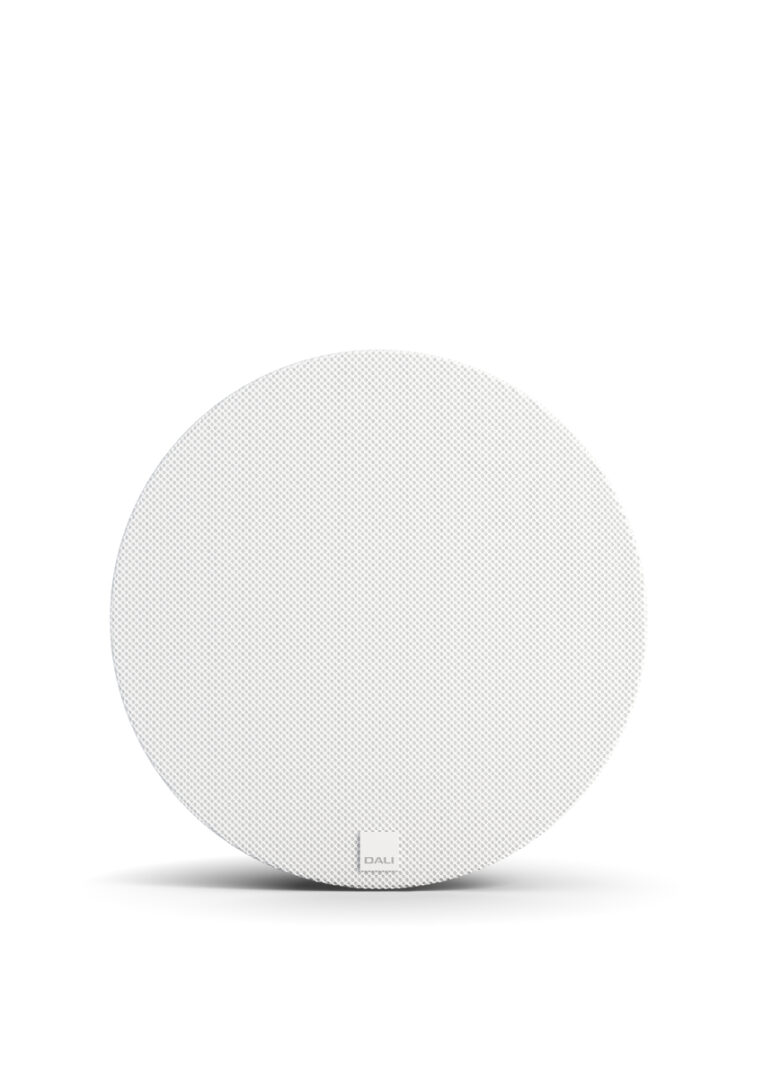

Discreet Design

The thin magnetic front grilles integrate seamlessly into any home environment.

Wide Dispersion

Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers.

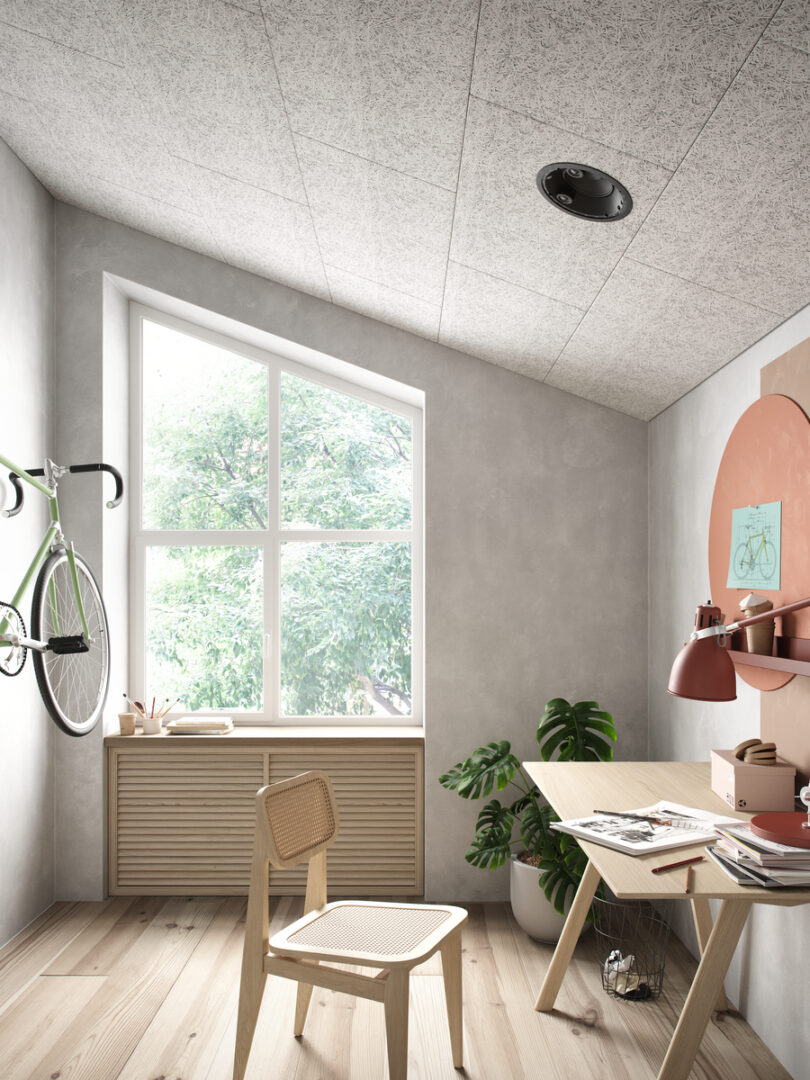

IN-CEILING HEIGHT SPEAKER

Great stereo in small to medium sizes

The new PHANTOM E-60 S stereo speaker builds on the heritage of the highly acclaimed DALI PHANTOM E-60 in-ceiling speaker. Featuring two 20 mm soft dome textile tweeters, you will experience a wider than average audio experience from this true stereo speaker. Two switches ensure that both channels can be tuned for the acoustics of your listening room, resulting in fantastic integration and a high level of detail. The PHANTOM E-60 S delivers great stereo sound in small to medium sized rooms and can also be used as a height speaker in a multichannel setup.

DESIGN DETAILS

Every detail thought through

Thick edges around the PHANTOM E-60 S baffle offers tight and secure mounting and improves the overall strength and rigidity of the speaker, while the dogleg mounting system makes installation a simple one-step action. At the front, the stylish and discreet grille design helps the PHANTOM E-60 S integrate perfectly into any room.

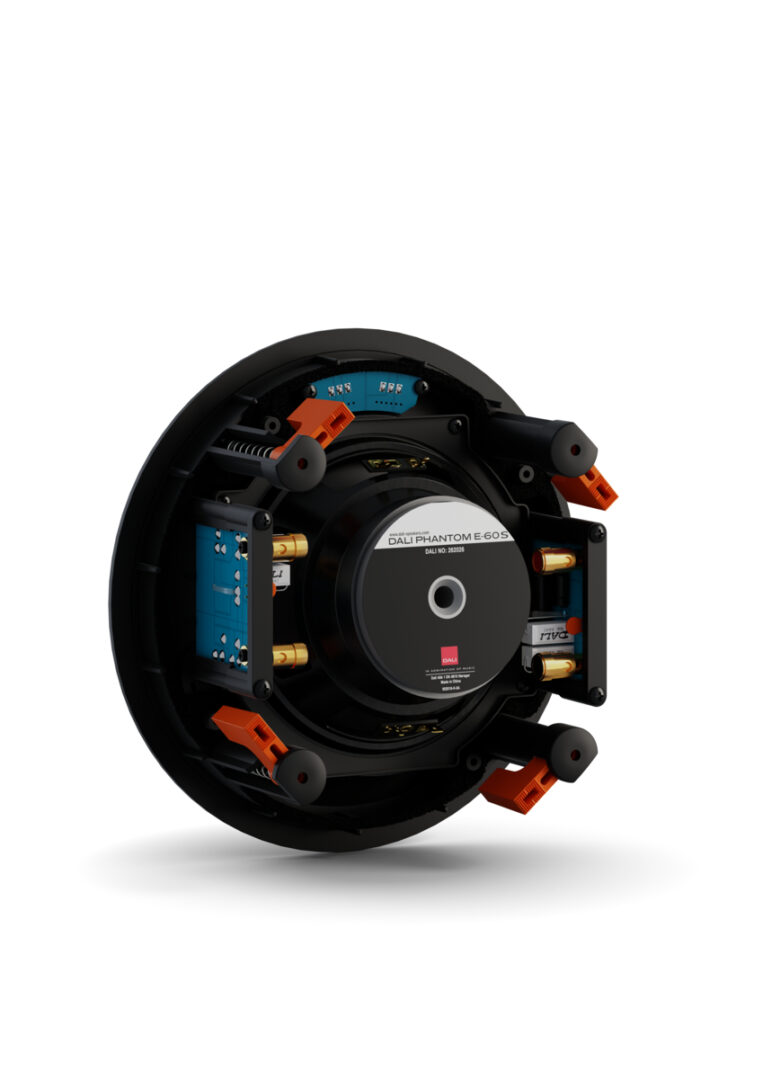

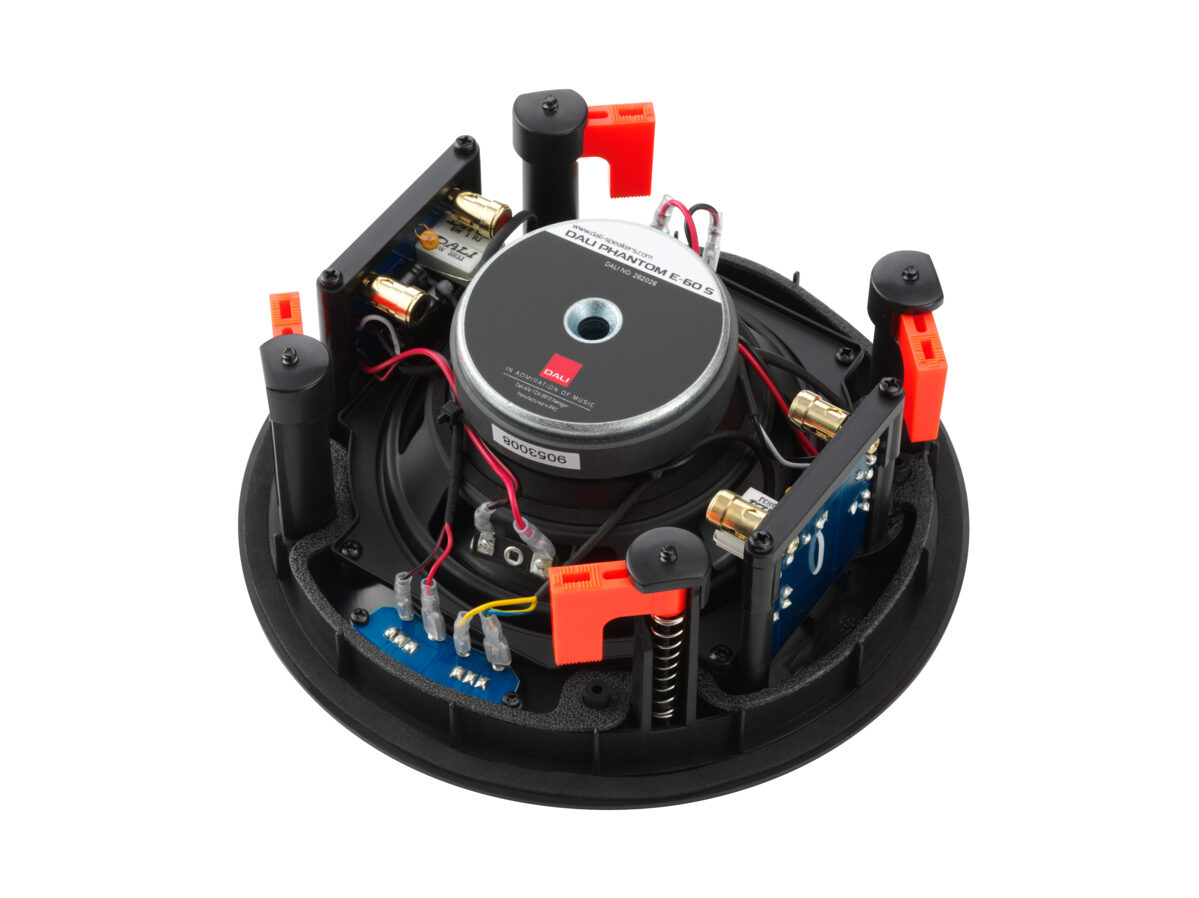

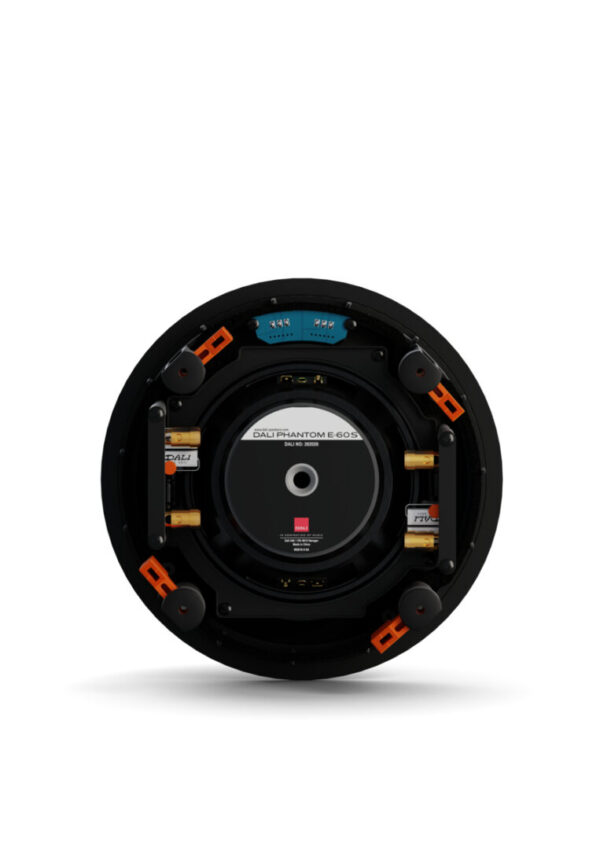

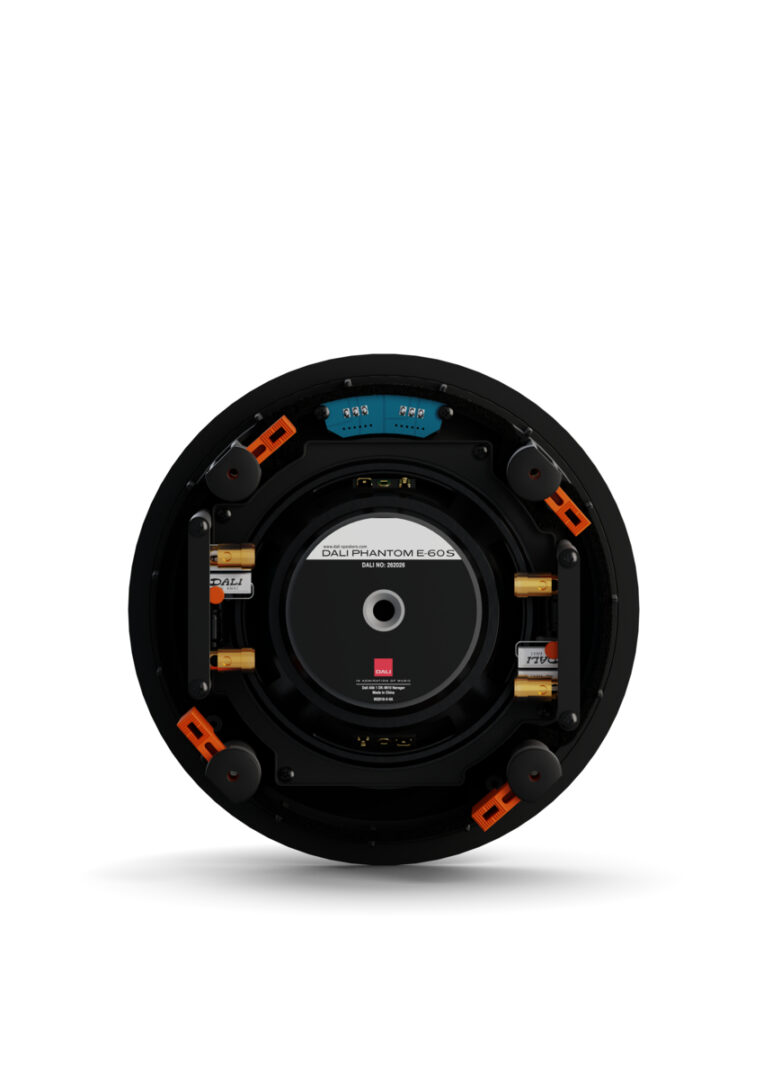

HIGH QUALITY CROSSOVER

Made from audiophile components

Designed specifically for this speaker, the components used for the PHANTOM E-60 S crossover has been chosen for their audiophile quality. The signal path is a dual-mono construction with separate inputs and crossover circuit boards for each channel, and the internal wiring is optimised for the speaker design and secured to eliminate the possibility of rattling. The speaker terminals are also located on the crossover for the shortest possible signal path, while the spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

TWIN TWEETERS

Delivering high-frequency performance

The two 20 mm ultra-lightweight soft dome tweeters coupled with the polypropylene woofer from the other PHANTOM E series speakers ensure a compact, high quality, two-way, two-channel performance. The 144 mm distance between the tweeters also helps to maximiser the stereo performance.

POLYPROPYLENE WOOFER

Designed with low loss principles

To ensure the best balance between durability and great audio reproduction, the 6½” woofer features a polypropylene cone. The woofer is also tilted and angled to improve directionality and soundstaging. Every part of the woofer has been designed according to our low loss principles, so even smaller amplifiers can combine with the PHANTOM E-60 S to deliver a high-quality audio experience.

Specifications

Frequency range: 57 – 25,000 Hz ±3 dB
Sensitivity: 90 dB @ 1 m for 2.83 V (both channels)
Nominal impedance: 8 + 8 ohm
Maximum: SPL 105 dB
Crossover frequency: 2,600 Hz
Crossover principle: 2+2-way
Recommended amplifier power: 2 x 20 – 80 Watt
High frequency driver: 2 x 20 mm soft dome
High frequency diaphragm: Soft woven fabric
Low/Mid frequency driver: 1 x 6½ inch dual voice coil
Low/Mid frequency diaphragm: Polypropylene
Connection input: 2 x Single wire
Enclosure type: Open back
Other features Normal: L High+, Normal R High+
Installation location: In-ceiling/In-wall
Recommended placement: Ceiling/Front/Centre/Surround
IP rating: N/A
Outer dimensions incl. grille (H x W x D): Ø 258 x 109 mm,  Ø 10.16 x 4.30 inches
Outer dimensions excl. grille (H x W x D): Ø 242 x 105 mm Ø 9.53 x 4.14 inches
Cut-out dimensions: Ø 225 mm Ø 8.86 inches, Ø 225 mm
Mounting depth: 101 mm, 3.98 inches
Recommended rear volume (backbox): 5 – 35 litres
Optimum rear volume: 15 litres
Ceiling/wall thickness (total dog-leg span): 10 – 70 mm, 0.39 – 2.76 inches
Neto weight incl.grille: 2 kg
Finish: White
Optional accessories: CLASSIC, SQUARE and DESIGN grilles, Pre-construction Kit, PHANTOM UNIVERSAL 25 backbox

Package Contents: DALI In-Ceiling Speaker Phantom E-60 S, 1Pc, Grille, Manual.
